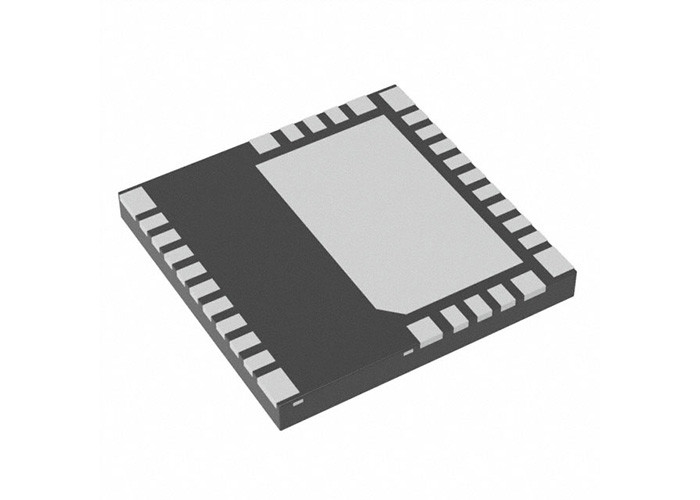

LMG3411R150RWHR Gan Driver IC 6A VQFN32 Power Distribution Switch IC N Channel

Load Drivers LMG3411R150RWHR Power Distribution Switches N Channel 6A VQFN32

Description

LMG3411R150RWHR GaN FET with integrated driver and protection enables designers to achieve new levels of power density and efficiency in power electronics systems. The inherent advantages of this device over silicon MOSFETs include ultra-low input and output capacitance, zero reverse recovery to reduce switching losses by as much as 80%, and low switch node ringing to reduce EMI. These advantages enable dense and efficient topologies like the totempole PFC.

Specifications

Features

• GaN process qualified through accelerated reliability in-application hard-switching profiles

• Enables high-density power conversion designs

• Superior system performance over cascode or stand-alone GaN FETs

• Low inductance 8 mm × 8 mm QFN package for ease of design and layout

• Adjustable drive strength for switching performance and EMI control

• Digital fault status output signal

• Only +12 V of unregulated supply needed

• Integrated gate driver

• Zero common source inductance

• 20-ns propagation delay for high-frequency design

• Trimmed gate bias voltage to compensate for threshold variations ensures reliable switching

• 25-V/ns to 100-V/ns adjustable slew rate

• Robust protection

• Requires no external protection components

• Overcurrent protection with <100 ns response

• Greater than 150-V/ns slew rate immunity

• Transient overvoltage immunity

• Overtemperature protection

• Undervoltage lockout (UVLO) protection on all supply rails

• Device Options:

• LMG3410R150: Latched overcurrent protection

• LMG3411R150: Cycle-by-cycle overcurrent proection

Pin Configuration and Functions
