Product Details:
|
| Output Configuration: | High Side | Output Type: | P-Channel |
|---|---|---|---|
| Voltage - Load: | 480V (Max) | Voltage - Supply (Vcc/Vdd): | 9.5V ~ 18V |
| Current - Output (Max): | 12A | Rds On (Typ): | 70mOhm |
| Operating Temperature: | -40°C ~ 125°C (TJ) | Input Type: | Non-Inverting |
| Highlight: | LMG3410R070RWHR GaN IC,GaN IC Power Switch Driver,P Channel GaN Driver Integrated rohs |
||

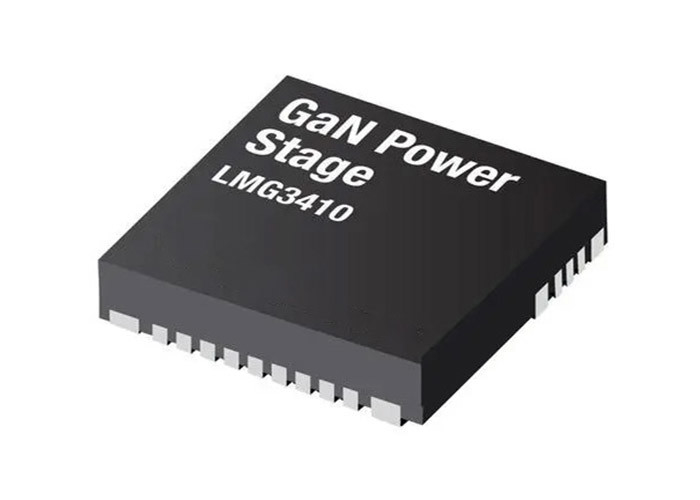

GaN IC LMG3410R070RWHR Power Switch Driver GaN with integrated driver and protection
Specifications
|
|
1 Driver |
|
|
1 Output |
|
|
40 A |
|
|
9.5 V |
|
|
18 V |
|
|
Non-Inverting |
|
|
15 ns |
|
|
4.2 ns |
|
|
- 40 C |
|
|
+ 125 C |
Description
LMG341xR070 GaN power stage with integrated driver and protection enables designers to achieve new levels of power density and efficiency in power electronics systems.
LMG341xR070 inherent advantages over silicon MOSFETs include ultra-low input and output capacitance, zero reverse recovery to reduce switching losses by as much as 80%, and low switch node ringing to reduce EMI. These advantages enable dense and efficient topologies like the totem-pole PFC.
Features
GaN Process Qualified Through Accelerated Reliability In-application Hard-switching Mission Profiles
Enables High Density Power Conversion Designs
Superior System Performance Over Cascode or Stand-alone GaN FETs
Low Inductance 8mm x 8mm QFN Package for Ease of Design, and Layout
Adjustable Drive Strength for Switching Performance and EMI Control
Digital Fault Status Output Signal
Only +12 V Unregulated Supply Needed
Integrated Gate Driver
Zero Common Source Inductance
20 ns Propagation Delay for MHz Operation
Process-tuned Gate Bias Voltage for Reliability
25 to 100V/ns User Adjustable Slew Rate
Robust Protection
Requires No External Protection Components
Over-current Protection with <100ns Response
>150V/ns Slew Rate Immunity
Transient Overvoltage Immunity
Overtemperature Protection
UVLO Protection on All Supply Rails
Simplified Block Diagram
