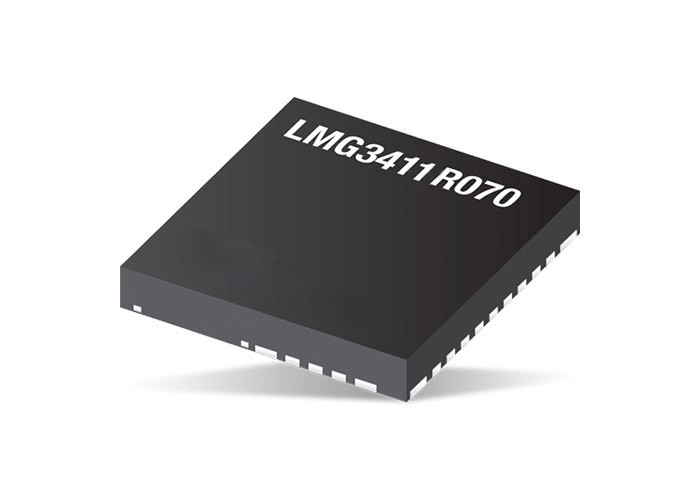

FET Driver LMG3411R070RWHR Gan Power Ic Power Distribution Switches P Channel 32VQFN

FET Driver LMG3411R070RWHR Gan Power Ic Power Distribution Switches P Channel 32VQFN
FET Driver LMG3411R070RWHR Gan Power Ic Power Distribution Switches P Channel 32VQFN

Large Image :  FET Driver LMG3411R070RWHR Gan Power Ic Power Distribution Switches P Channel 32VQFN

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LMG3411R070RWHR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: Original Factory
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union

FET Driver LMG3411R070RWHR Gan Power Ic Power Distribution Switches P Channel 32VQFN

Description
Features: Bootstrap Circuit, 5V Regulated Output Ratio - Input:Output: 1:1
Interface: Logic, PWM Voltage - Supply (Vcc/Vdd): 9.5V ~ 18V
Current - Output (Max): 12A Fault Protection: Over Current, Over Temperature, UVLO
Highlight:

FET Driver LMG3411R070RWHR

,

LMG3411R070RWHR Gan Power Ic

,

Gan Power Ic Power Distribution Switches

FET Driver LMG3411R070RWHR Power Distribution Switches P Channel 12A 32VQFN Load Drivers



Specifications

Features:

Bootstrap Circuit, 5V Regulated Output

Ratio - Input:Output:

1:1

Interface:

Logic, PWM

Voltage - Supply (Vcc/Vdd):

9.5V ~ 18V

Current - Output (Max):

12A

Fault Protection:

Over Current, Over Temperature, UVLO


Description

LMG3411R070RWHR provides a smart alternative to traditional cascode GaN and standalone GaN FETs by integrating a unique set of features to simplify design, maximize reliability and optimize the performance of any power supply. Integrated gate drive enables 100V/ns switching with near zero Vds ringing, <100 ns current limiting self-protects against unintended shoot-through events, Overtemperature shutdown prevents thermal runaway, and system interface signals provide self-monitoring capability.



Applications
High Density Industrial and Consumer Power Supplies
Multi-level Converters
Solar Inverters
Industrial Motor Drives
Uninterruptable Power Supplies
High Voltage Battery Chargers



Pin Configuration and Functions

FET Driver LMG3411R070RWHR Gan Power Ic Power Distribution Switches P Channel 32VQFN 0



Simplified Block Diagram

FET Driver LMG3411R070RWHR Gan Power Ic Power Distribution Switches P Channel 32VQFN 1

5R030
