Product Details:
|
| Type: | RTL8721 | Frequency: | 200M |
|---|---|---|---|
| Package: | QFN68 | CPU: | M0+M4 |
| SRAM: | 512K+4M | Interface: | USB 2.0 |
| Highlight: | IoT Chip RTL8721DM,200M IoT Chip D Series,WIFI Low Energy SOC Chips rohs |
||

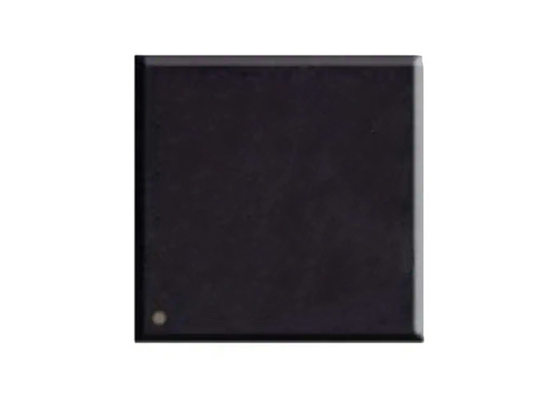

IoT Chip RTL8721DM Ameba D Series Dual Band WIFI BLE 5.0 IOT Low Energy SOC with High Security
General Description
RTL8721DM is a highly integrated single chip with a low-power-consumption mechanism ideal for IoT (Internet of Things) applications. It combines a Real-M300 CPU (up to 200MHz), Real-M200 CPU (20MHz)Wi-Fi, Bluetooth, Wireless MAC/Baseband/RF, audio codec features, and configurable GPIOs that can function as digital peripherals for various product applications and control usage. The RTL8721DM’s embedded memory configuration enables simpler and faster application development.
Description
|
Frequency: |
200M |
Package: |
QFN68 |
|---|---|---|---|
|
CPU: |
M0+M4 |
SRAM: |
512K+4M |
Features
CPU:
Real-M300 @ 200MHz
Real-M200 @ 20MHz
Memory:
4.5MB embedded SRAM
XIP (eXecute In Place)
Provides external Flash interface
Wi-Fi:
802.11 a/b/g/n 1x1, 2.4GHz & 5GHz up to 150Mbps (PHY rate)
BLE:
BLE5.0 (PHY, LL, L2CAP, SM, ATT, GAP, GATT)
Supports both central and peripheral modes
High power mode (8dbm, shares the same PA with Wi-Fi)
Security:
Hardware Engine
Trustzone-M
Secure Boot
SWD Protection
Wi-Fi WEP, WPA, WPA2, WPS
Security engine: MD5, SHA-1, SHA2-256, DES, 3DES, AES
Peripheral Interface:
USB 2.0
UART x4
SPI interface x3
I2C interface x 2
PWM x17
Cap Touch
IR
Audio ADC
RTC
Maximum 16 GPIOs
Key Scan
Package:
Type: QFN68
Size: 8x8
Applications
Smart Home
Smart Appliance
Smart Building
Retail Applications
Health Care Applications
Wi-Fi-enabled Toys
Audio Applications
QFN68 pin assignment for RTL8721DM
