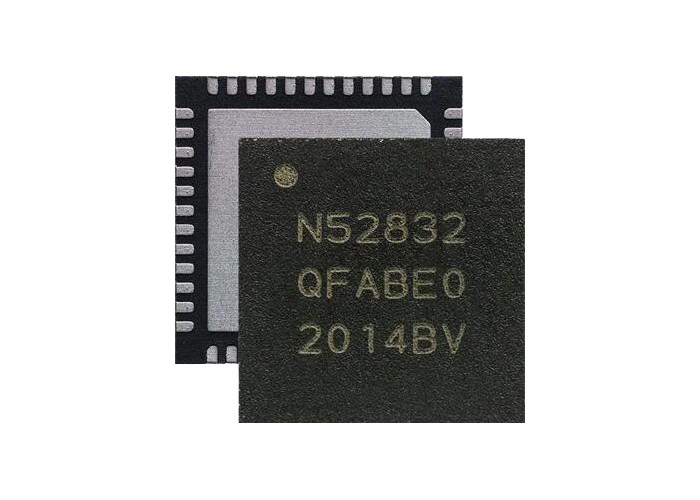

NRF52832-QFAB-R Versatile BT 5.3 SoC NRF52832 BT Low Energy QFN48

NRF52832-QFAB-R Versatile BT 5.3 SoC NRF52832 BT Low Energy QFN48

Product Description

NRF52832-QFAB-R is a general-purpose multiprotocol SoC. It meets the challenges of a broad range of applications that need advanced BT LE features, protocol concurrency and a rich and varied set of peripherals and features. In addition, it offers generous memory availability for both Flash and RAM.

Specification Of NRF52832-QFAB-R

Features

• 2.4 GHz transceiver
• -96 dBm sensitivity in BT low energy mode
• Supported data rates: 1 Mbps, 2 Mbps BT low energy mode
• -20 to +4 dBm TX power, configurable in 4 dB steps
• On-chip balun (single-ended RF)
• 5.3 mA peak current in TX (0 dBm)
• 5.4 mA peak current in RX
• RSSI (1 dB resolution)
• ARM® Cortex®-M4 32-bit processor with FPU, 64 MHz
• 215 EEMBC CoreMark® score running from flash memory
• 58 μA/MHz running from flash memory
• 51.6 μA/MHz running from RAM
• Data watchpoint and trace (DWT), embedded trace macrocell (ETM), and instrumentation trace macrocell (ITM)
• Serial wire debug (SWD)
• Trace port

Applications

• Internet of Things (IoT)
• Home automation
• Sensor networks
• Building automation
• Industrial
• Retail
• Personal area networks
