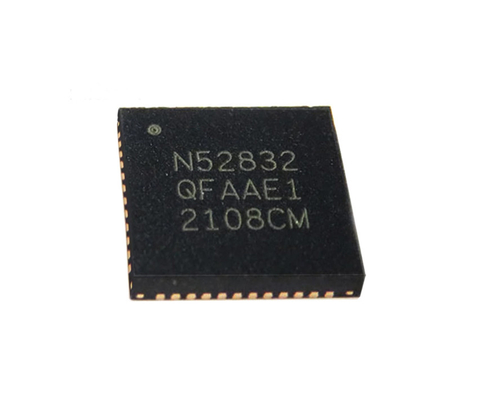

Multiprotocol RF System On Chip NRF52832-QFAA-R NRF52832 BT Smart 2.4GHz SoC

RF System On Chip NRF52832-QFAA-R NRF52832 Multiprotocol BT Smart 2.4GHz SoC

Product Description Of NRF52832-QFAA-R

NRF52832-QFAA-R is built around an Arm® Cortex™-M4 CPU with floating point unit running at 64 MHz. It has NFC-A Tag for use in simplified pairing and payment solutions. It has numerous digital peripherals and interfaces such as PDM and I2S for digital microphones and audio.

Specification Of NRF52832-QFAA-R

Features Of NRF52832-QFAA-R

• 12-bit, 200 ksps ADC - 8 configurable channels with programmable gain
• 64 level comparator
• 15 level low power comparator with wakeup from System OFF mode
• Temperature sensor
• 32 general purpose I/O pins
• 3x 4-channel pulse width modulator (PWM) unit with EasyDMA
• Digital microphone interface (PDM)
• 5x 32-bit timer with counter mode
• Up to 3x SPI master/slave with EasyDMA
• Up to 2x I2C compatible 2-wire master/slave
• I2S with EasyDMA
• UART (CTS/RTS) with EasyDMA
• Programmable peripheral interconnect (PPI)
• Quadrature decoder (QDEC)
• AES HW encryption with EasyDMA
• Autonomous peripheral operation without CPU intervention using PPI and EasyDMA
• 3x real-time counter (RTC)
• Single crystal operation
• Package variants
• QFN48 package, 6 × 6 mm
• WLCSP package, 3.0 × 3.2 mm

Applications Of NRF52832-QFAA-R

• A4WP wireless chargers and devices
• Remote control toys
• Computer peripherals and I/O devices
• Mouse
• Keyboard
• Multi-touch trackpad
• Gaming
