Product Details:
|
| Voltage - Collector Emitter Breakdown (Max): | 1200 V | Current - Collector (Ic) (Max): | 380 A |
|---|---|---|---|
| Power - Max: | 870 W | Current - Collector Cutoff (Max): | 1 MA |
| Operating Temperature: | -40°C ~ 150°C (TJ) | Vce(on) (Max) @ Vge, Ic: | 1.95V @ 15V, 250A |
| Highlight: | FS380R12A6T4BBPSA1 Igbt Power Module,Igbt Power Module 1200V 380A,380A Automotive Sic Igbt Module |
||
Automotive IGBT Modules FS380R12A6T4BBPSA1 1200V 380A sixpack automotive qualified IGBT module
Description

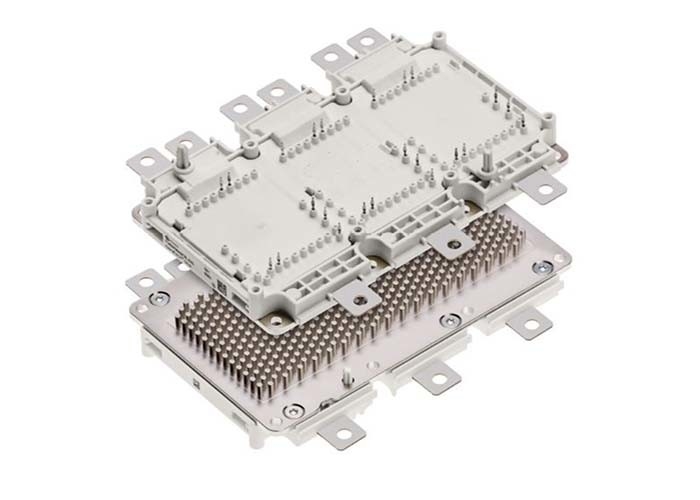

FS380R12A6T4BBPSA1 Drive module with IGBT4 and diode is an automotive qualified power module designed for Hybrid- and Electric Vehicle applications. The product FS380R12A6T4B comes with a PinFin baseplate and performance ceramic.
Summary of Features
Product Attributes
|
Product Status
|
Active
|
|
IGBT Type
|
Trench Field Stop
|
|
Configuration
|
Three Phase Inverter
|
|
Voltage - Collector Emitter Breakdown (Max)
|
1200 V
|
|
Current - Collector (Ic) (Max)
|
380 A
|
|
Power - Max
|
870 W
|
|
Vce(on) (Max) @ Vge, Ic
|
1.95V @ 15V, 250A
|
|
Current - Collector Cutoff (Max)
|
1 mA
|
|
Input
|
Standard
|
|
NTC Thermistor
|
Yes
|
|
Operating Temperature
|
-40°C ~ 150°C (TJ)
|
|
Mounting Type
|
Chassis Mount
|
|
Package / Case
|
Module
|
|
Supplier Device Package
|
AG-HYBRIDD-1
|
