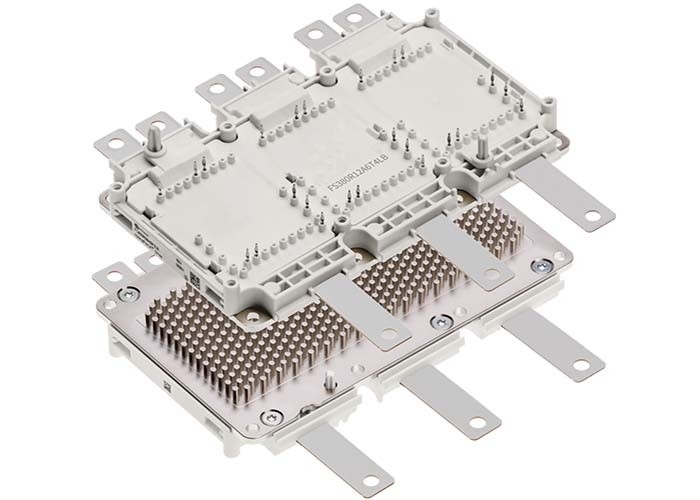

Name: Drive Module FS380R12A6T4LBBPSA1 IGBT Module 3 Independent 1200V 380A
Brand: Original Factory
SKU: FS380R12A6T4LBBPSA1
Rating: 4.6 (172 reviews)

Place of Origin:

Brand Name:

Original Factory

Certification:

Lead free / RoHS Compliant

Model Number:

FS380R12A6T4LBBPSA1

Minimum Order Quantity:

Price:

Contact for Sample

Packaging Details:

Module

Delivery Time:

5-8 work days

Payment Terms:

T/T, L/C, Western Union

Part Number:

FS380R12A6T4LBBPSA1

Voltage - Collector Emitter Breakdown (Max):

1200 V

Current - Collector (Ic) (Max):

380 A

Mounting Type:

Chassis Mount

Configuration:

3 Independent

Package / Case:

Module

Highlight:

3 Independent IGBT Driver Module 1200v

IGBT Powder Module 380A Chassis Mount

IGBT Powder Module 1200V

FS380R12A6T4LBBPSA1 Drive module with IGBT4 and diode is an automotive qualified power module designed for Hybrid- and Electric Vehicle applications. The product FS380R12A6T4LB comes with a PinFin baseplate and performance ceramic.

Part Number	FS380R12A6T4LBBPSA1
Product Status	Active
Configuration	3 Independent
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	380 A
Input	Standard
NTC Thermistor	No
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	AG-HYBRIDD-2

Benefits Of FS380R12A6T4LBBPSA1

Compact Design
Direct Cooled Base Plate and performance ceramic
Integrated NTC temperature sensor
PressFIT Contact Technology
RoHS compliant
Mechanical guiding elements
Long tabs for current sense
Potential Applications

Features Of FS380R12A6T4LBBPSA1

Blocking voltage 1200V
Extreme low Rth and optimal cooling
Low Qg and Cres
Low Inductive Design
Tvj op = 150°C

Applications Of FS380R12A6T4LBBPSA1

Hybrid Electrical Vehicles (H)EV
Motor Drives
Commercial Agriculture Vehicles

Package Outlines Of FS380R12A6T4LBBPSA1
