Product Details:
|
| Part Number: | FF08MR12W1MA1B11ABPSA1 | FET Type: | 2 N-Channel (Dual) |
|---|---|---|---|
| Drain To Source Voltage (Vdss): | 1200V (1.2kV) | Current - Continuous Drain (Id) @ 25°C: | 150A (Tj) |
| Gate Charge (Qg) (Max) @ Vgs: | 15V | Input Capacitance (Ciss) (Max) @ Vds: | 600V |
| Power - Max: | 20mW (Tc) | Operating Temperature: | -40°C ~ 150°C (TJ) |
| Highlight: | MOSFET Silicon Carbide Modules,Silicon Carbide Modules 1200V,1200V IGBT Half Bridge Module |
||

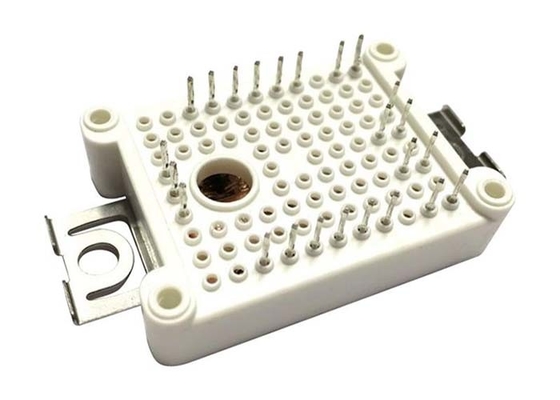

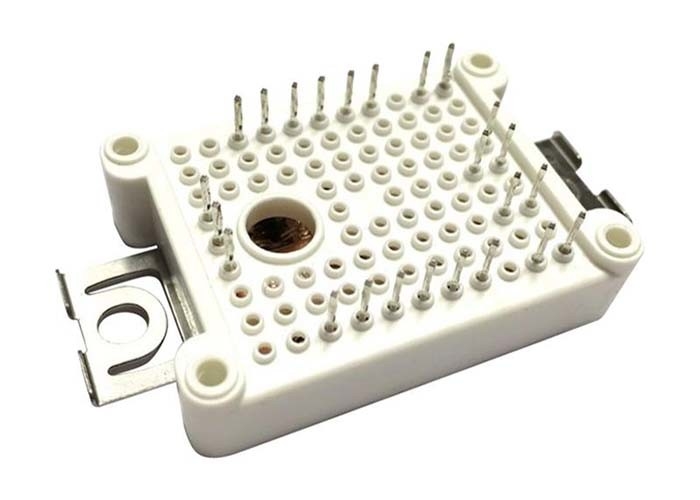

Silicon Carbide Modules FF08MR12W1MA1B11ABPSA1 1200V Half Bridge Module
Overview Of FF08MR12W1MA1B11ABPSA1
FF08MR12W1MA1B11ABPSA1 is 8 mΩ halfbridge module implementing the new CoolSiC™Automotive MOSFET 1200V, NTC temperature sensor and PressFIT contact technology. With the full automotive qualification, the field of applications for CoolSIC™ is now extended to high voltage automotive applications with high efficiency and switching frequency requirements, such as HV/HV DC-DC step-up converters, multiphase inverters and fast-switching auxiliary drives like fuel-cell compressors.
Product Attributes Of FF08MR12W1MA1B11ABPSA1
| Part Number | FF08MR12W1MA1B11ABPSA1 |
|
Product Status |
Active |
|
FET Type |
2 N-Channel (Dual) |
|
FET Feature |
Silicon Carbide (SiC) |
|
Drain to Source Voltage (Vdss) |
1200V (1.2kV) |
|
Current - Continuous Drain (Id) @ 25°C |
150A (Tj) |
|
Rds On (Max) @ Id, Vgs |
9.8mOhm @ 150A, 15V |
|
Vgs(th) (Max) @ Id |
5.55V @ 90mA |
|
Gate Charge (Qg) (Max) @ Vgs |
15V |
|
Input Capacitance (Ciss) (Max) @ Vds |
600V |
|
Power - Max |
20mW (Tc) |
|
Operating Temperature |
-40°C ~ 150°C (TJ) |
|
Mounting Type |
Chassis Mount |
|
Package / Case |
Module |
|
Supplier Device Package |
AG-EASY1BM-2 |
Features Of FF08MR12W1MA1B11ABPSA1
Potential Applications Of FF08MR12W1MA1B11ABPSA1
Package Outlines Of FF08MR12W1MA1B11ABPSA1
