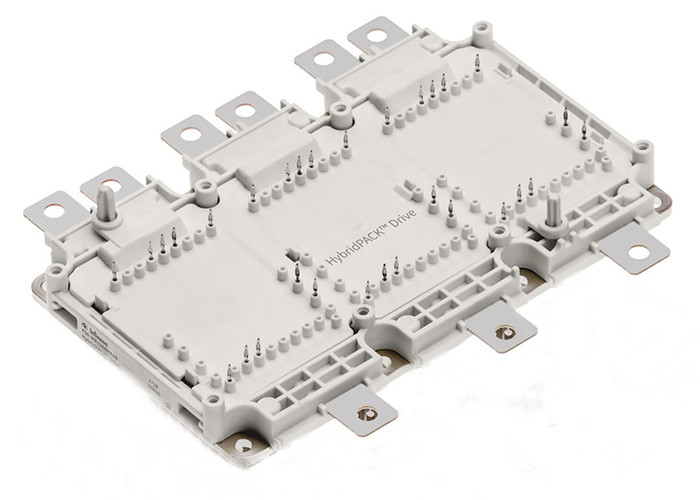

IGBT Modules FS03MR12A6MA1BBPSA1 Mosfet Array 6N Channel 3 Phase Bridge

IGBT Modules FS03MR12A6MA1BBPSA1 Mosfet Array 6N Channel 3 Phase Bridge

Detailed Description Of FS03MR12A6MA1BBPSA1

FS03MR12A6MA1BBPSA1 is a very compact six-pack module (1200V/400A) optimized for hybrid and electric vehicles.The power module implements the new CoolSiC™ Automotive MOSFET 1200V, optimized for electric drive train applications.

Product Attributes Of FS03MR12A6MA1BBPSA1

Features Of FS03MR12A6MA1BBPSA1

• Electrical features
• VDSS = 1200 V
• ID nom = 400 A
• New semiconductor material - Silicon Carbide
• Low RDSon
• Low Switching Losses
• Low Qg and Crss
• Low Inductive Design <10nH
• Tvj op = 150 °C
• Mechanical features
• 4.2 kV DC 1 sec Insulation
• High Creepage and Clearance Distances
• Compact design
• High Power Density
• Direct Cooled PinFin Base Plate
• High Performance Si3N4 Ceramic
• Guiding elements for PCB and cooler assembly
• Integrated NTC temperature sensor
• PressFIT Contact Technology
• RoHS compliant
• UL 94 V0 module frame
• Potential applications

Automotive Applications Of FS03MR12A6MA1BBPSA1

• Hybrid Electrical Vehicles (H)EV
• Motor Drives
• Commercial Agriculture Vehicles

Description Of FS03MR12A6MA1BBPSA1
