Product Details:
|
| Data Rate: | 480 Mb/s | Supply Voltage - Min: | 1.8 V |
|---|---|---|---|
| Supply Voltage - Max:: | 3.3 V | Minimum Operating Temperature:: | - 40 C |
| Maximum Operating Temperature:: | + 85 C | Standard: | USB 2.0 |

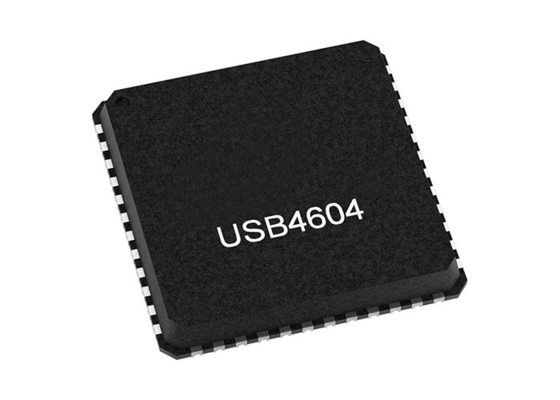

Integrated Circuit Chip USB4604I-1070HN USB 2.0 HSIC High-Speed 4-Port Hub Controller
Product Description Of USB4604I-1070HN
USB4604I-1070HN is a low-power, OEM configurable, MTT (Multi-Transaction Translator) USB 2.0 hub controller with 4 downstream ports and advanced features for embedded USB applications. The USB4604 is fully compliant with the USB 2.0 Specification, USB 2.0 Link Power Management Addendum, High-Speed Inter-Chip (HSIC) USB Electrical Specification Revision 1.0, and will attach to an upstream port as a Full-Speed hub or as a Full-/Hi-Speed hub.
Specification Of USB4604I-1070HN
|
|
USB Hubs |
|
|
Hub Controller |
|
|
SMD/SMT |
|
|
SQFN-48 |
|
|
USB 2.0 |
|
|
High Speed (HS) |
|
|
480 Mb/s |
|
|
1.8 V |
|
|
3.3 V |
|
|
- 40 C |
|
|
+ 85 C |
Features Of USB4604I-1070HN
Hub Controller IC with 4 downstream ports
Upstream port selectable between HSIC or USB 2.0
USB-IF Battery Charger revision 1.2 support on up and downstream ports (DCP, CDP, SDP)
Battery charging support for Apple® devices
FlexConnect: Downstream port 1 able to swap with upstream port, allowing master capable devices to control other devices on the hub
USB to I²C™/SPI bridge endpoint support
USB Link Power Management (LPM) support
SUSPEND pin for remote wakeup indication to host
Start Of Frame (SOF) synchronized clock output pin
Vendor Specific Messaging (VSM) support
Enhanced OEM configuration options available through OTP or SMBus Slave Port
VBUS (5V) or VBAT only operation
3.3V only operation
VBAT + 1.8V operation
3.3V + 1.8V operation
48-pin (7x7mm) SQFN, RoHS compliant package
Applications Of USB4604I-1070HN
LCD monitors and TVs
Multi-function USB peripherals
PC mother boards
Set-top boxes, DVD players, DVR/PVR
Printers and scanners
PC media drive bay
Portable hub boxes
Mobile PC docking
Embedded systems
