Product Details:
|
| Drain To Source Voltage (Vdss): | 1200V (1.2kV) | Current - Continuous Drain (Id) @ 25°C: | 400A |
|---|---|---|---|
| Rds On (Max) @ Id, Vgs: | 3.7mOhm @ 400A, 15V | Vgs(th) (Max) @ Id: | 5.55V @ 240mA |
| Gate Charge (Qg) (Max) @ Vgs: | 1320nC @ 15V | Input Capacitance (Ciss) (Max) @ Vds: | 42.5nF @ 600V |
| Power - Max: | 20mW | Operating Temperature: | -40°C ~ 150°C (TJ) |
| Highlight: | Automotive IGBT Modules 1200V,Automotive IGBT Modules 400A,400A Sic Mosfet Module |
||

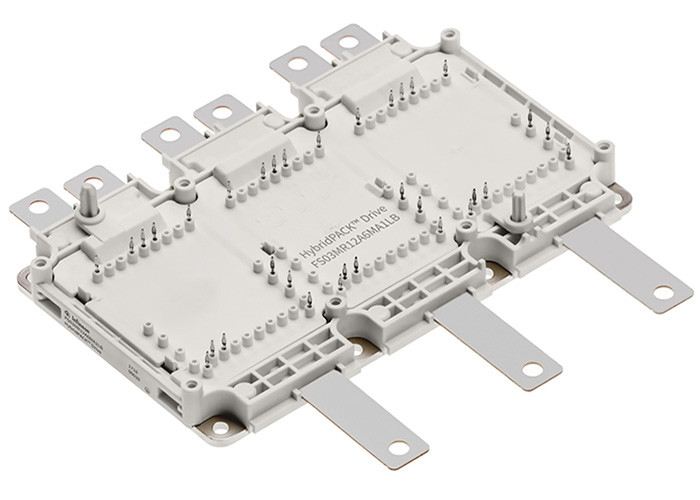

Automotive IGBT Modules FS03MR12A6MA1LBBPSA1 1200V 400A Silicon Carbide MOSFET Modules
Detailed Description
FS03MR12A6MA1LBBPSA1 is a very compact six-pack module (1200V/400A) optimized for hybrid and electric vehicles.The power module implements the new CoolSiC™ Automotive MOSFET 1200V, optimized for electric drive train applications.
Product Attributes
|
Product Status |
Active |
|
FET Type |
6 N-Channel (3-Phase Bridge) |
|
FET Feature |
Silicon Carbide (SiC) |
|
Drain to Source Voltage (Vdss) |
1200V (1.2kV) |
|
Current - Continuous Drain (Id) @ 25°C |
400A |
|
Rds On (Max) @ Id, Vgs |
3.7mOhm @ 400A, 15V |
|
Vgs(th) (Max) @ Id |
5.55V @ 240mA |
|
Gate Charge (Qg) (Max) @ Vgs |
1320nC @ 15V |
|
Input Capacitance (Ciss) (Max) @ Vds |
42.5nF @ 600V |
|
Power - Max |
20mW |
|
Operating Temperature |
-40°C ~ 150°C (TJ) |
|
Mounting Type |
Chassis Mount |
|
Package / Case |
Module |
|
Supplier Device Package |
AG-HYBRIDD-2 |
Summary of Features
Benefits
Automotive Applications
FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
