Product Details:
|
| FET Feature: | Silicon Carbide (SiC) | Drain To Source Voltage (Vdss): | 1200V (1.2kV) |
|---|---|---|---|
| Current - Continuous Drain (Id) @ 25°C: | 200A | Mounting Type: | Chassis Mount |
| Package / Case: | Module | Supplier Device Package: | AG-HYBRIDD-2 |
| Highlight: | HEV Silicon Carbide Power Modules,Silicon Carbide Power Modules 1200V,200A Automotive Modules igbt |
||

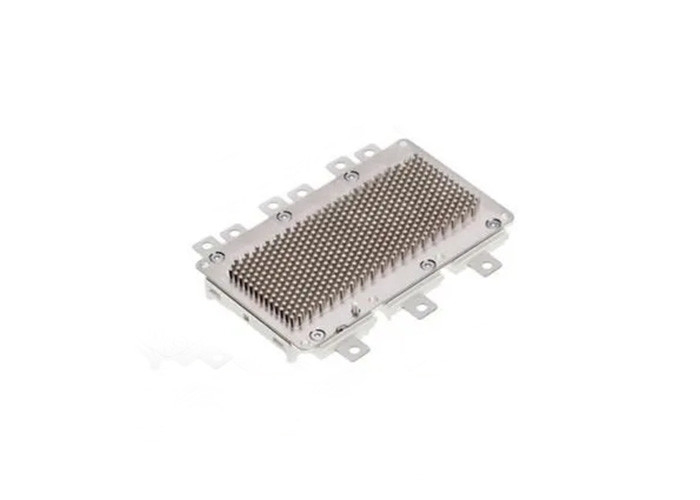

Silicon Carbide MOSFET Modules FS05MR12A6MA1BBPSA1 1200V 200A Automotive Modules
Detailed Description
FS05MR12A6MA1BBPSA1 is a six-pack module which benefits from Infineon’s robust silicon carbide for hybrid and electric vehicles. The power module implements the new Automotive CoolSiCTM MOSFET 1200V, optimized for electric drivetrain applications. The chipset sets a benchmark in current density, short circuit ruggedness (singular event), high blocking voltage and reduced switching losses. It enables compact designs and helps to improve system efficiency,allowing at the same time reliable operation under harsh environmental conditions. It is qualified for automotive applications.
Product Attributes
|
FET Feature: |
Silicon Carbide (SiC) |
Drain To Source Voltage (Vdss): |
1200V (1.2kV) |
|---|---|---|---|
|
Current - Continuous Drain (Id) @ 25°C: |
200A |
Mounting Type: |
Chassis Mount |
|
Package / Case: |
Module |
Supplier Device Package: |
AG-HYBRIDD-2 |
Typical Applications
AutomotiveApplications
Hybrid Electrical Vehicles(H)EV
Motor Drives
Commercial Agriculture Vehicles
Benefits
Compact Design
Direct Cooled Base Plate
Guiding elements for PCB and cooler assembly
Integrated NTC temperature sensor
PressFIT Contact Technology
RoHS compliant
Superior reliability
Package outlines
FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
