Product Details:
|
| Voltage - Collector Emitter Breakdown (Max): | 950 V | Current - Collector (Ic) (Max): | 310 A |
|---|---|---|---|
| Power - Max: | 20 MW | Vce(on) (Max) @ Vge, Ic: | 2.25V @ 15V, 400A |
| Current - Collector Cutoff (Max): | 1 MA | Input Capacitance (Cies) @ Vce: | 49.2 NF @ 25 V |
| Operating Temperature: | -40°C ~ 150°C (TJ) | Mounting Type: | Chassis Mount |
| Highlight: | F3L600R10W4S7FC22BPSA1,IGBT Module 950V,IGBT Module Trench Field Stop |
||

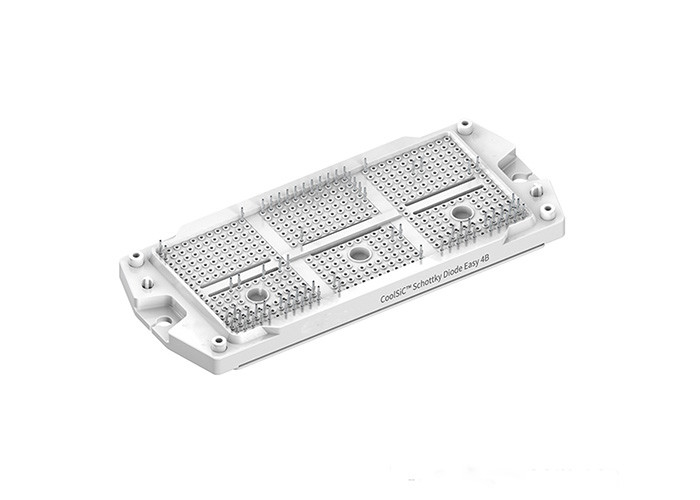

F3L600R10W4S7FC22BPSA1 950V 310A IGBT Module Trench Field Stop Three Level Inverter
Detailed Description
F3L600R10W4S7FC22BPSA1 is 950 V, 600 A 3-Level IGBT module with TRENCHSTOP™ IGBT7 and 1200 V CoolSiC™ Schottky Diode.
Product Attributes
|
Product Status |
Active |
|
IGBT Type |
Trench Field Stop |
|
Configuration |
Three Level Inverter |
|
Voltage - Collector Emitter Breakdown (Max) |
950 V |
|
Current - Collector (Ic) (Max) |
310 A |
|
Power - Max |
20 mW |
|
Vce(on) (Max) @ Vge, Ic |
2.25V @ 15V, 400A |
|
Current - Collector Cutoff (Max) |
1 mA |
|
Input Capacitance (Cies) @ Vce |
49.2 nF @ 25 V |
|
Input |
Standard |
|
NTC Thermistor |
Yes |
|
Operating Temperature |
-40°C ~ 150°C (TJ) |
|
Mounting Type |
Chassis Mount |
|
Package / Case |
Module |
Features
Electrical features
VCES = 950 V
IC nom = 600 A / ICRM = 800 A
CoolSiCTM Schottky diode gen 5
TRENCHSTOPTM IGBT7
Tvj,op = 150°C
Mechanical features
Package with CTI > 400
PressFIT contact technology
Integrated NTC temperature sensor
Potential applications
Solar applications
Three-level applications
Package outlines
