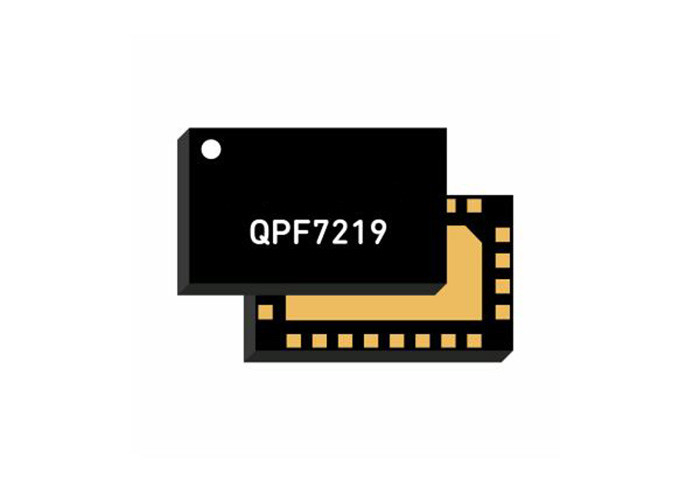

WIFI 6 Chip QPF7219TR13 2.4GHz WiFi Integrated Front End Module LGA-24

WIFI 6 Chip QPF7219TR13 2.4GHz WiFi Integrated Front End Module LGA-24​

Product Description

QPF7219TR13 is an integrated front end module (iFEM) designed for Wi-Fi 6 (802.11ax) systems which marries the advantages of active components with BAW filter technology. The compact form factor and integrated matching minimizes layout area in the application and greatly reduces the number of external components.

Specification Of QPF7219TR13

Functional Block Diagram

Features

• 2402-2472 MHz
• POUT = +25 dBm FCC Restricted Bandedge Compliance
• POUT = +20 dBm MCS11 HE40 -43 dB Dynamic EVM
• POUT = +22.5 dBm MCS9 VHT40 -35 dB Dynamic EVM
• POUT = +23.5 dBm MCS7 HT20/40 -30 dB Dynamic EVM
• POUT = +25 dBm MCS0 HT20 Spectral Mask Compliance
• Optimized for +5 V Operation
• 31 dB Tx Gain
• 2 dB Noise Figure
• 15.5 dB Rx Gain and 6.5 dB Bypass Loss

Applications

• Access Points
• Wireless Routers
• Residential Gateways
• WiFi Customer Premise Equipment
• Internet of Things
