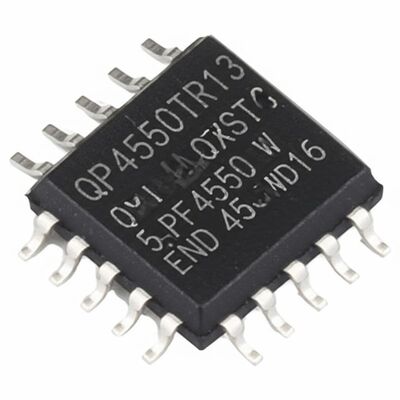

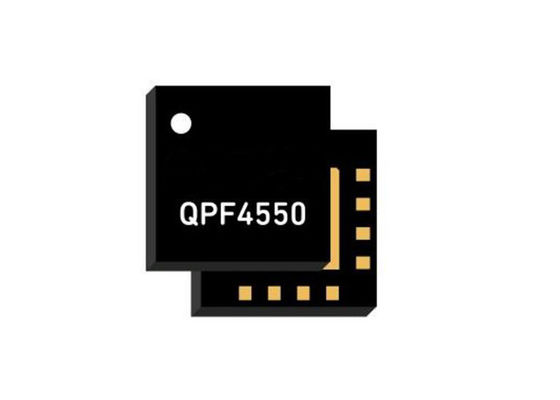

QPF4550 WIFI Chip 5GHz Front End Module with 30 dBm P1dB and 2.1 dB Noise Figure in QFN-16 Package

QPF4550 WIFI Chip 5GHz Front End Module with 30 dBm P1dB and 2.1 dB Noise Figure in QFN-16 Package
QPF4550 WIFI Chip 5GHz Front End Module with 30 dBm P1dB and 2.1 dB Noise Figure in QFN-16 Package
QPF4550 WIFI Chip 5GHz Front End Module with 30 dBm P1dB and 2.1 dB Noise Figure in QFN-16 Package QPF4550 WIFI Chip 5GHz Front End Module with 30 dBm P1dB and 2.1 dB Noise Figure in QFN-16 Package QPF4550 WIFI Chip 5GHz Front End Module with 30 dBm P1dB and 2.1 dB Noise Figure in QFN-16 Package

Large Image :  QPF4550 WIFI Chip 5GHz Front End Module with 30 dBm P1dB and 2.1 dB Noise Figure in QFN-16 Package

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: QPF4550TR13
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN16
Delivery Time: 5-8 work days
Payment Terms: L/C,T/T,Western Union
Contact Now

QPF4550 WIFI Chip 5GHz Front End Module with 30 dBm P1dB and 2.1 dB Noise Figure in QFN-16 Package

Description
Product Name: QPF4550 Operating Supply Current: 15 MA
Operating Frequency: 5150 MHz To 5925 MHz Supply Voltage: 5 V
NF - Noise Figure: 2.1 DB P1dB - Compression Point: 30 DBm
Highlight:

QPF4550TR13 Fem Front End Module

,

Fem Front End Module QPF4550

,

5GHz 5V RF Front End Module

QPF4550TR13 WIFI Chip QPF4550 5GHz WiFi Front End Module In QFN-16 Package
QPF4550TR13 is an integrated front end module (FEM) designed for Wi-Fi 6 (802.11ax) systems. The compact form factor and integrated matching minimizes layout area in the application.
Specifications
Product Name QPF4550
Operating Frequency 5150 MHz To 5925 MHz
Noise Figure (NF) 2.1 DB
Operating Supply Current 15 MA
Supply Voltage 5 V
P1dB - Compression Point 30 DBm
Functional Block Diagram
QPF4550 WIFI Chip 5GHz Front End Module with 30 dBm P1dB and 2.1 dB Noise Figure in QFN-16 Package 0
Key Features
  • 5150 - 5925 MHz operating frequency range
  • POUT = +15dBm MCS11 HE160 -43dB Dynamic EVM
  • POUT = +16dBm MCS11 HE80 -43dB Dynamic EVM
  • POUT = +20.5dBm MCS9 VHT80 -35dB Dynamic EVM
  • POUT = +24.5dBm MCS0 HT20 Spectral Mask Compliance
  • Optimized for +5 V Operation
  • 30 dB Tx Gain
  • 2.1 dB Noise Figure
  • 13.5 dB Rx Gain & 8 dB Bypass Loss
  • 30 dB 2.4 GHz Rejection on Rx Path
