Product Details:
|
| Part Number: | F3L400R10W3S7B11BPSA1 | IGBT Type: | Trench |
|---|---|---|---|
| Product Status: | Active | Voltage - Collector Emitter Breakdown (Max): | 950 V |
| Vce(on) (Max) @ Vge, Ic: | 1.4V @ 15V, 150A | Current - Collector Cutoff (Max): | 70 µA |
| Input Capacitance (Cies) @ Vce: | 25.2 NF @ 25 V | Operating Temperature: | -40°C ~ 150°C (TJ) |
| Highlight: | 950V Automotive IGBT Modules,Automotive IGBT Modules 400A,950V 3 Level IGBT Module |
||

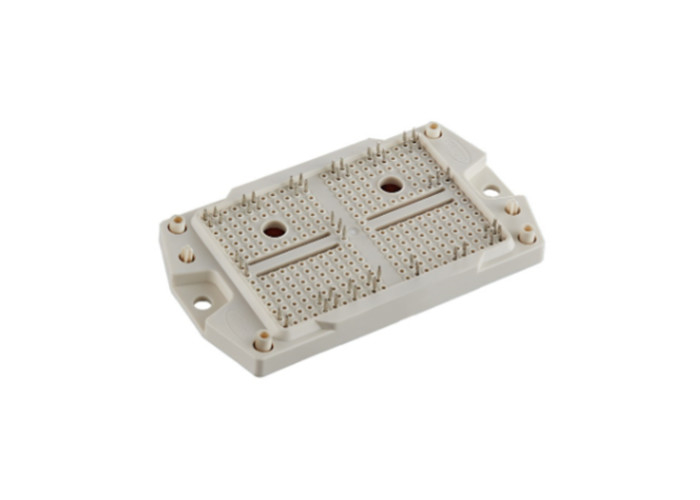

Automotive IGBT Modules F3L400R10W3S7B11BPSA1 950V 400A 3 level IGBT module
Detailed Description
F3L400R10W3S7B11BPSA1 is 950 V, 400 A ANPC (active neutral point clamping) IGBT module with TRENCHSTOP™ IGBT7, Emitter Controlled diode, NTC and PressFIT contact technology. Together with FS3L200R10W3S7F_B11, it provides a total solution for 1500 V 3-phase PV string inverters.
Product Attributes
|
Part Number: |
F3L400R10W3S7B11BPSA1 |
IGBT Type: |
Trench |
|---|---|---|---|
|
Product Status: |
Active |
Voltage - Collector Emitter Breakdown (Max): |
950 V |
|
Vce(on) (Max) @ Vge, Ic: |
1.4V @ 15V, 150A |
Current - Collector Cutoff (Max): |
70 µA |
|
Input Capacitance (Cies) @ Vce: |
25.2 NF @ 25 V |
Operating Temperature: |
-40°C ~ 150°C (TJ) |
Potentielle Anwendungen
3-Level-Applikationen
Solar Anwendungen
Elektrische Eigenschaften
Hohe Stromdichte
Niedrige Schaltverluste
TrenchstopTM IGBT7
Mechanische Eigenschaften
Integrierter NTC Temperatur Sensor
PressFIT Verbindungstechnik
Summary of Features
S7: extremly low switching loss and soft turn-off behavior
950 V rapid diode with low recovery loss and high softness
3-level topology reduces filter size, weight and cost
CTI>400
Innovative mechanical concept reduces Rthjh
Tvj op = 150°C
Baseplate less design
PressFIT pins
