Product Details:
|
| Part Number: | QPF4216TR13 | Operating Frequency: | 2.4 GHz To 2.5 GHz |
|---|---|---|---|
| Operating Supply Voltage: | 5 V | Gain: | 32 DB |
| Noise Figure: | 1.8 DB | Mounting Style: | SMD/SMT |
| Highlight: | QPF4216TR13 QPF4216,5V 2GHz QPF4216,LGA24 WiFi 6 RF Front End Module |
||

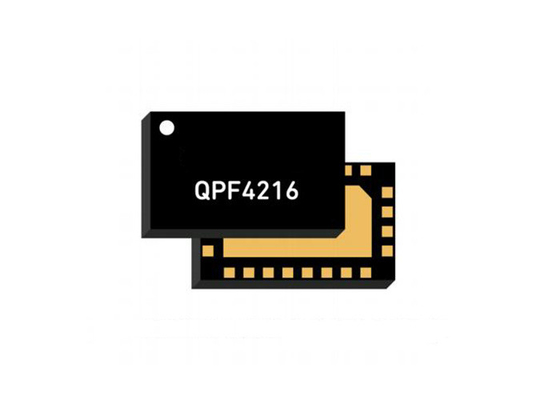

WIFI 6 Chip QPF4216TR13 QPF4216 2GHz WiFi 6 RF Front End Module LGA-24
Product Description
QPF4216TR13 is an integrated front end module (FEM) designed for Wi-Fi 802.11ax systems. QPF4216TR13 integrates a 2.4 GHz power amplifier (PA), regulator, single pole two throw switch (SP2T), bypassable low noise amplifier (LNA) into a single device.
Specification Of QPF4506TR13
| Wi-Fi | |
| 2.4 GHz to 2.5 GHz | |
| 1.8 dB | |
| 5 V | |
| SMD/SMT | |
| LGA-24 | |
| Development Kit: | QPF4216EVB-01 |
| Gain: | 32 dB |
| Moisture Sensitive: | Yes |
| Product Type: | RF Front End |
Functional Block Diagram
Features
