Product Details:
|
| Product Name: | RG500U-CN | Supply Voltage: | 3.3~4.3 V |
|---|---|---|---|
| Typical: | 3.8 V | Operating Temperature: | -30 °C ~ +75 °C |

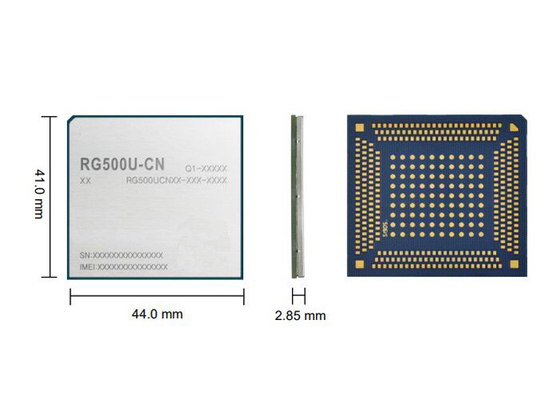

| Extended Temperature: | -40 °C ~ +85 °C | Module Size: | 41.0 Mm × 44.0 Mm × 2.85 Mm |
| Weight: | 13g | Package: | LGA |
| Highlight: | Industrial Grade 5G Module,5G Module RG500U,RG500U-CN 5G Radio Module |
||

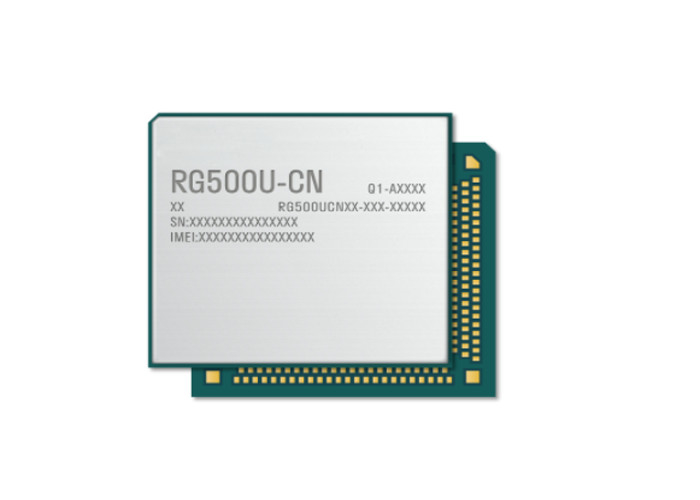

5G Module Industrial Grade Module RG500U RG500U-CN 5G Sub-6 GHz Module
Product Description
RG500U-CN is a high-performance, cost-effective LGA package 5G Sub-6 GHz module designed for IoT/eMBB applications. Using 3GPPRelease 15 technology, it automatically adapts to 5G NR NSA and SA dual-module networks, supports TDD and FDD modes, and supports dual cards. Backward compatible with 4G/3G, package design and pin definition are compatible with 5G module RG500Q series.
The RG500U-CN is an industrial grade module, suitable for industrial and commercial grade applications only.
RG500U-CN has built-in rich network protocols, integrates rich peripheral interfaces, provides PCIe/USB/SDIO/UART/SPI/I2C/I2S/GPIOs and other communication interfaces, and supports various driver and software functions, and supports VoLTE (optional), VoNR (optional), DFOTA, Audio, eSIM* (optional), greatly expanding its application scenarios in the IoT industry. RG500U-CN can be widely used in vertical industries such as smart energy, Internet of Vehicles, industrial Internet, telemedicine, smart education, high-definition video, smart city, and home entertainment.
