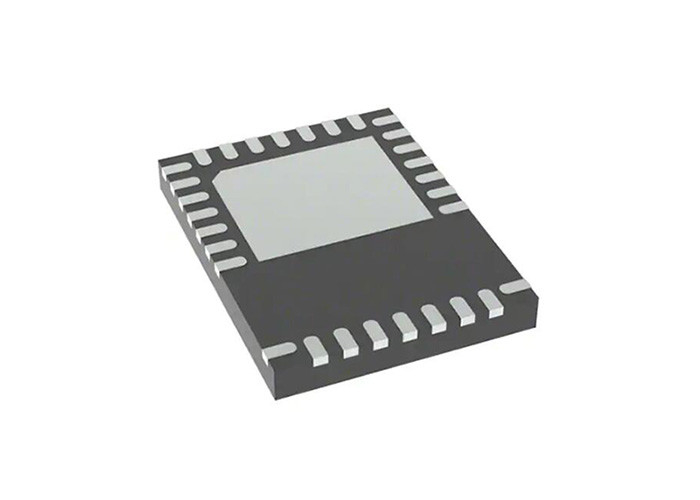

NV6125 Fast Charging Chip 650V 8A QFN30 Power Management IC

Fast Charging Chip NV6125 650V GaNFas Power IC 8A QFN30 Power Management IC

Product Description

NV6125 is a thermally-enhanced version of the popular NV6115 650 V GaNFast™ power IC, monolithically-integrated gate drive, enhanced thermals when using CS resistor, optimized for high-frequency and soft-switching topologies.

Specification Of NV6125

Simplified Schematic

Features

• Thermally-enhanced version of NV6115
• Large cooling pad
• 2 MHz operation
• Enhanced thermals when using CS resistor
• Programmable turn-on dV/dt
• Small, low-profile SMT QFN
• 6 x 8 mm footprint, 0.85 mm profile
• Minimized package inductance
• Low 175 mΩ resistance
• Wide VCC range (10 to 30 V)
• Zero reverse recovery charge
• ESD protection – 2 kV (HBM), 1 kV (CDM)
• Monolithically-integrated gate drive

Inductive Switching Circuit

Applications

• Wireless power
• Solar Micro-inverters
• Half bridge
• Full bridge
• LED lighting
• TV SMPS

Typical Application Circuits
