Product Details:
|
| Part Number: | ESP32-S2 | Operating Frequency: | 2.4 GHz |
|---|---|---|---|
| Maximum Data Rate: | 150 Mbps | Output Power: | 19.5 DBm |
| Sensitivity: | - 75 DBm | Type: | Wi-Fi |
| Highlight: | Singal Core MCU ESP32-S2,MCU ESP32-S2 Highly Integrated,MCU 2.4GHz Soc Wifi Module |
||

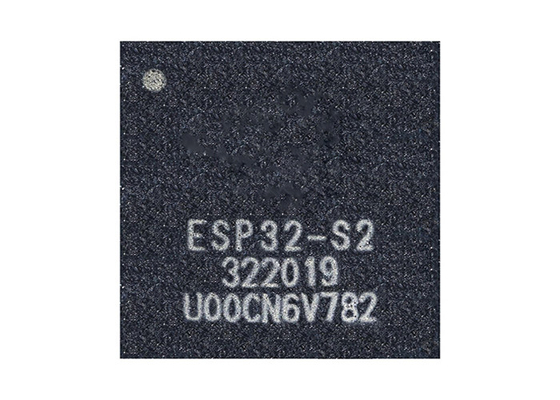

Low power singal core MCU ESP32-S2 Highly integrated 2.4GHz WiFi System on Chip Module
Overview
ESP32-S2 is a highly-integrated, low-power, 2.4GHz Wi-Fi System-on-Chip (SoC) solution. With its state-of-the-art power and RF performance, this SoC is an ideal choice for a wide variety of application scenarios relating to Internet of Things (IoT), wearable electronics and smart home
Specifications
|
|
3.3 V |
|
|
68 mA |
|
|
190 mA |
|
|
128 kB |
|
|
QFN-56 |
|
ADC Resolution: |
12 bit |
|
Data Bus Width: |
32 bit |
|
Data RAM Size: |
320 kB |
|
Data RAM Type: |
SRAM |
|
Interface Type: |
I2C, I2S, SPI, UART |
|
Length: |
7 mm |
|
Maximum Clock Frequency: |
240 MHz |
|
Maximum Operating Temperature: |
+ 85 C |
|
Minimum Operating Temperature: |
- 40 C |
|
Moisture Sensitive: |
Yes |
|
Number of ADC Channels: |
20 Channel |
|
Number of I/Os: |
43 I/O |
|
Number of Timers: |
4 Timer |
|
Processor Series: |
ESP32-S2 |
|
Product Type: |
RF System on a Chip - SoC |
|
Program Memory Type: |
ROM |
|
Technology: |
Si |
|
Width: |
7 mm |
Block Diagram
Pin Layout
FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
