Product Details:
|
| Part Number: | ESP32-WROOM-32D | Frequency: | 2.4 GHz To 2.5 GHz |
|---|---|---|---|
| Output Power: | 20 DBm | Data Rate: | 150 Mb/s |
| Operating Supply Voltage: | 3 V To 3.6 V | Interface Type: | Serial |
| Highlight: | Multiprotocol Wireless Communication Module,esp wroom32d Wireless Communication Module,ESP32-WROOM-32D WiFi BT MCU |
||

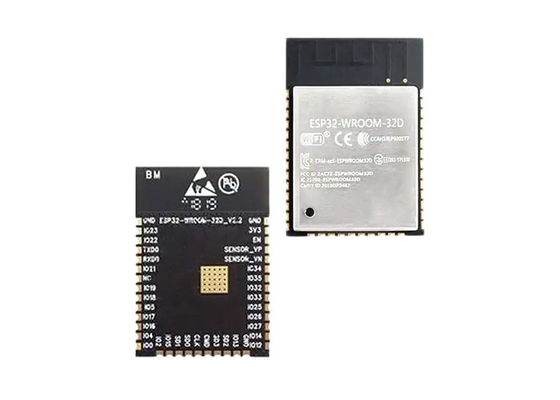

Wireless Communication Module ESP32-WROOM-32D Multiprotocol WiFi BT MCU Modules
Description
ESP32-WROOM-32D is Multiprotocol Modules SMD Module, ESP32-D0WD, 32Mbits SPI flash, UART mode, PCB antenna
Specifications
|
Product Status |
Active |
|
RF Family/Standard |
Bluetooth, WiFi |
|
Protocol |
802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3 |
|
Modulation |
CCK, DSSS, OFDM |
|
Frequency |
2.4GHz ~ 2.5GHz |
|
Data Rate |
150Mbps |
|
Power - Output |
20.5dBm |
|
Sensitivity |
-98dBm |
|
Serial Interfaces |
GPIO, I²C, I²S, PWM, SDIO, SPI, UART |
|
Antenna Type |
Integrated, Trace |
|
Utilized IC / Part |
ESP32-D0WD |
|
Memory Size |
448kB ROM, 536kB SRAM |
|
Voltage - Supply |
2.7V ~ 3.6V |
|
Mounting Type |
Surface Mount |
|
Operating Temperature |
-40°C ~ 105°C |
|
Package / Case |
38-SMD Module |
CPU and Internal Memory
ESP32-D0WD contains a dual-core Xtensa® 32-bit LX6 MCU. The internal memory includes:
448 KB of ROM for booting and core functions.
520 KB of on-chip SRAM for data and instructions.
8 KB of SRAM in RTC, which is called RTC FAST Memory and can be used for data storage; it is accessed by the main CPU during RTC Boot from the Deep-sleep mode.
8 KB of SRAM in RTC, which is called RTC SLOW Memory and can be accessed by the co-processor during the Deep-sleep mode.
1 Kbit of eFuse: 256 bits are used for the system (MAC address and chip configuration) and the remaining 768 bits are reserved for customer applications, including flash encryption and chip-ID.
Schematics
Physical Dimensions
