5GHz WIFI 6 Chip RF IF RFID WLAN8101CMP WLAN8101C Wi-Fi 6 Front-End Module

RF/IF and RFID WLAN8101CMP WLAN8101C 5GHz Wi-Fi 6 Front-End Module

Product Description

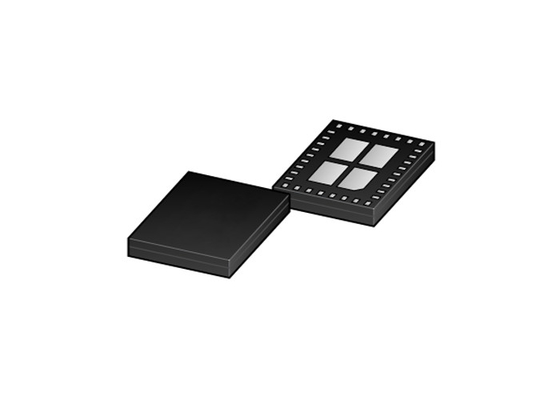

WLAN8101C is a 5 GHz 2 x 2 MIMO RFFE for Wi-Fi 6 applications in a 3 mm x 4 mm package.
WLAN8101C includes two monolithic front-end ICs. Each front-end IC has an integrated power amplifier, a low noise amplifier with bypass functionality, and a single pole double throw (SPDT) switch.
WLAN8101C also includes coexistence filters for both transmit and receive channels.
The device is matched to 50 Ω and integrates harmonic and out of band filtering which minimizes the layout area in the application.

Features and Benefits

• Small-size 2 x 2 MIMO RFFE module for WiFi 6 applications
• Integrated power amplifiers with multiple operation modes for dynamic power efficiency and linearity control
• Full high band 5.150 GHz to 5.925 GHz
• 3 TX operation modes enabling flexibility for power efficiency adaptation
• Integrated low-noise amplifiers supporting high gain and bypass modes
• Integrated SPDT switches for single antenna RX and TX operation
• Integrated directional couplers for precise transmit power control
• Requires no external matching components, DC free input/output ports
• Integrated RF decoupling capacitors for all VCC and control pins
• Low profile, small-size 3 mm x 4 mm package
• Integrated ESD protection on all pins
• Human Body Model (HBM) according to ANSI/ESDA/JEDEC standard JS-001 exceeds 2 kV
• Charged Device Model (CDM) according to ANSI/ESDA/JEDEC standard JS-002 exceeds 500 V

Applications

• Wi-Fi 6 support
• Smartphones, tablets, netbooks, and other portable computing devices
• Module applications for embedded systems

Functional Diagram
