Product Description

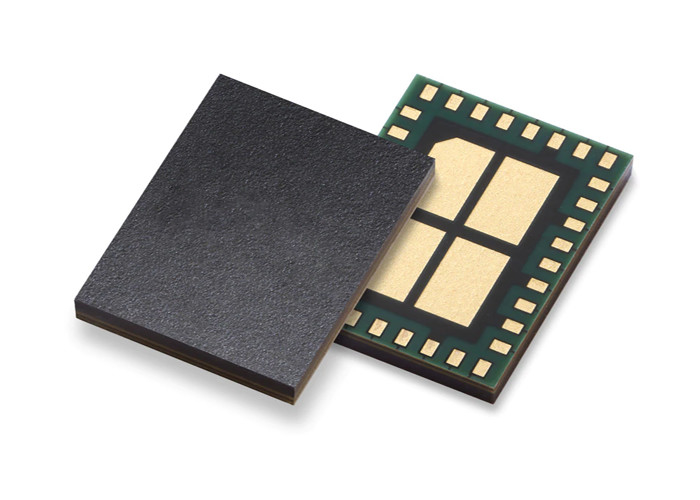

WLAN8101H is a 2.4 GHz 2 x 2 MIMO RFFE for Wi-Fi 6 applications in a 3 mm x 4 mm package.
WLAN8101H includes two monolithic front-end ICs. Each front-end IC includes a transmit amplifier with directional coupler, a low noise receive amplifier and a transmit/receive switch with a Bluetooth channel. The power amplifier supports 3 different TX gain modes to improve power efficiency. The directional coupler improves transmit-power sensing accuracy.
WLAN8101H also includes coexistence filters for both transmit and receive channels.
The device is matched to 50 Ω and integrates harmonic and out of band filtering which minimizes the layout area in the application.

Features

• Small-size 2 x 2 MIMO RFFE for Wi-Fi 6 applications
• Integrated power amplifiers with multiple operation modes for dynamic power efficiency and linearity control
• Full high band 2402 MHz to 2482 MHz
• 3 TX operation modes enabling flexibility for power efficiency adaptation
• Integrated low noise amplifiers supporting high gain and bypass modes
• Integrated SPDT switches for single antenna RX and TX operation
• Integrated directional couplers for precise transmit power control
• Requires no external matching components, DC free RF ports, except for the ANT, and BT ports (on-chip ESD coil)
• Integrated RF decoupling capacitors for all VCC and control pins
• Low profile, small-size 3 mm x 4 mm package
• Integrated ESD protection on all pins
• Human Body Model (HBM) according to ANSI/ESDA/JEDEC standard JS-001 exceeds 2 kV
• Charged Device Model (CDM) according to ANSI/ESDA/JEDEC standard JS-002 exceeds 500 V except for ANT pins the value is 400 V
• RoHS compliant

Applications

• Wi-Fi 6 support
• Smartphones, tablets, netbooks, and other portable computing devices
• Module applications for embedded systems
