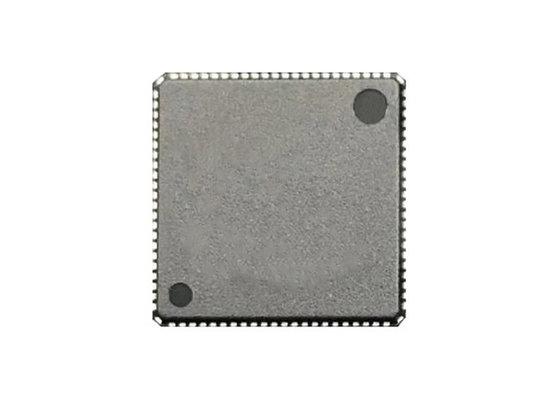

RTL8715AQ IoT Chip Dual Band Single Highly Integrated Chip RTL8715 QFN48 Low Energy

IoT Chip RTL8715AQ Dual Band Highly Integrated Single Chip RTL8715 QFN48 Low Energy

Product Description

RTL8715AQ integrates an Arm® v8-M MCU (300MHz and 2.23 DMIPS/MHz), Wireless MAC/Baseband, a 1T1R capable WLAN RF, audio codec, PMU (Power Management Unit), ISP and H.264 encoder in a single chip. It provides useful high speed connectivity interfaces, such as USB 2.0 host, USB 2.0 device, SDMMC HS, SDIO device, MII/RMII interfaces and also provides multiple configurable GPIOs that can be configured as digital peripherals for different applications and control usage.

Specification Of RTL8715AQ

Features

• Hardware Engine
• TrustZone-M
• Security Boot
• Wi-Fi WEP, WPA, WPA2, WPS
• Security engine: MD5, SHA-1, SHA2-256, DES, 3DES, AES
• Peripheral Interface
• SDIO 2.0 High Speed mode
• USB 2.0
• HS-UART x3
• SPI interface x4
• I2C interface x 4
• PWM x16
• LCD controller with 640x320 resolution panel
• MII interface with external 10/100Mbps Ethernet PHY
• RTC
• Maximum 90 GPIOs

Applications

• Wearable Camera
• Drone
• Smart Appliance
• Health Care Applications
• Video Applications
• Smart Door Bell

Other Supply Product Types

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
