Product Details:
|
| Part Number: | ESP32-S2-MINI-1 | Frequency: | 2.412 GHz To 2.484 GHz |
|---|---|---|---|
| Data Rate: | 150 Mb/s | Interface Type: | GPIO, I2C, I2S, SPI, UART, USB |
| Output Power: | 15 DBm, 19.5 DBm | Supply Current Transmitting: | 160 MA, 200 MA, 220 MA, 310 MA |
| Highlight: | UART Wireless Communication Module,ESP32-S2-MINI-1 WiFi MCU,ESP32-S2-MINI-1 310MA |
||

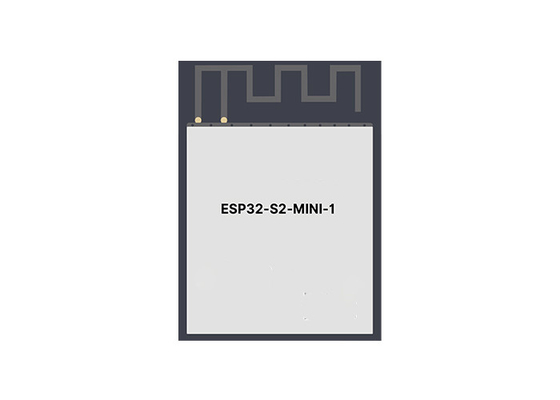

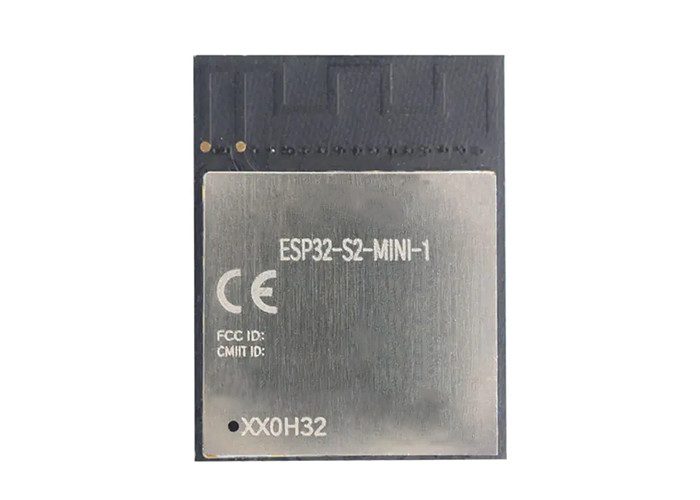

Wireless Communication Module ESP32-S2-MINI-1 Wi-Fi MCU modules
Description
ESP32-S2-MIN-1 is a powerful, generic W-Fi McU modules that have a nich set of peripherals. It's an ideal choice for a wide variety of pplication scenarios relating to Intemet of Things (IoT),wearable electronics and smart home. At the core of this module is ESP32-S2FH4 1 ESP32-S2FN4R2,an Xlensa@ 32-bit LX7 CPU that operates at up to 240 MHz.
Specifications
|
Product Status |
Active |
|
RF Family/Standard |
WiFi |
|
Protocol |
802.11b/g/n |
|
Frequency |
2.412GHz ~ 2.484GHz |
|
Data Rate |
150Mbps |
|
Power - Output |
19.5dBm |
|
Sensitivity |
-97dBm |
|
Serial Interfaces |
ADC, GPIO, I²C, I²S, SPI, PWM, UART, USB |
|
Antenna Type |
PCB Trace |
|
Utilized IC / Part |
ESP32-S2 |
|
Memory Size |
128kB ROM, 320kB SRAM |
|
Voltage - Supply |
3V ~ 3.6V |
|
Current - Receiving |
63mA ~ 68mA |
|
Current - Transmitting |
160mA ~ 310mA |
|
Mounting Type |
Surface Mount |
|
Operating Temperature |
-40°C ~ 85°C |
|
Package / Case |
56-VFQFN Exposed Pad |
Block Diagram
Physical Dimensions
