Product Details:
|
| Part Number: | ESP32-S2-MINI-1U | Frequency: | 2.412GHz ~ 2.484GHz |
|---|---|---|---|
| Data Rate: | 150Mbps | Power - Output: | 19.5dBm |
| Sensitivity: | -97dBm | Voltage - Supply: | 3V ~ 3.6V |
| Highlight: | Generic 32bit ESP32-S2-MINI-1U,ESP32-S2-MINI-1U MCU 2.4 GHz,2.4GHz RF Transceiver Modules |
||

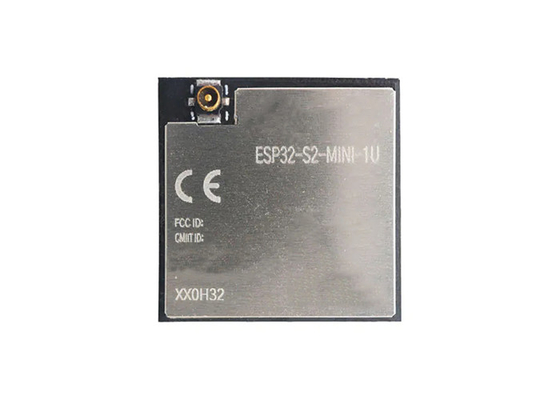

ESP32-S2-MINI-1U Generic 32bit MCU 2.4 GHz Wi-Fi module RF Transceiver Modules
Description
ESP32-S2-MINI-1U is a powerful, generic Wi-Fi MCU modules that have a rich set of peripherals.It's an ideal choice for a wide variety of application scenarios relating to Intermet of Things (IoT),wearable electronics and smart home. At the core of this module is ESP32-S2FH4 1 ESP32- S2FN4R2,an Xtensa 32-bit LX7 CPU that operates at up to 240 MHz.
Specifications
|
|
802.11 b/g/n |
|
|
2.412 GHz to 2.484 GHz |
|
|
150 Mb/s |
|
|
GPIO, I2C, I2S, SPI, UART, USB |
|
|
15 dBm, 19.5 dBm |
|
|
3 V |
|
|
3.6 V |
|
|
160 mA, 200 mA, 220 mA, 310 mA |
|
|
63 mA, 68 mA |
|
|
- 40 C |
|
|
+ 85 C |
|
|
Tray |
|
Antenna Connector Type: |
IPEX |
|
Brand: |
Espressif Systems |
|
Moisture Sensitive: |
Yes |
|
Operating Supply Voltage: |
3 V to 3.6 V |
|
Product Type: |
WiFi Modules |
|
Protocol - WiFi - 802.11: |
WiFi |
Block Diagram
Pin Layout
