Product Details:
|
| Part Number: | MKW36A512VFT4 | Maximum Operating Temperature: | + 105 C |
|---|---|---|---|
| Minimum Operating Temperature: | - 40 C | Program Memory Type: | Flash |
| Mounting Type: | Surface Mount, Wettable Flank | Protocol: | BT V5.0 |
| Highlight: | 2.4GHz BT IC MKW36A512VFT4,MKW36A512VFT4 BT Low Energy 5.0,MKW36A512VFT4 BT 5.0 |
||
BT IC MKW36A512VFT4 2.4GHz BT Low Energy 5.0 Wireless Microcontroller
Product Description
MKW36A512VFT4 wireless microcontrollers (MCU) is highly integrated single-chip devices that enable BT Low Energy (BLE) and Generic FSK connectivity for automotive embedded systems. To meet the stringent requirements of automotive applications.
Specification
|
Product Status |
Active |
|
Type |
TxRx + MCU |
|
Modulation |
FSK, GFSK, MSK |
|
Frequency |
2.4GHz |
|
Data Rate (Max) |
1Mbps |
|
Power - Output |
5dBm |
|
Sensitivity |
-95dBm |
|
Memory Size |
265kB Flash, 64kB RAM |
|
Serial Interfaces |
I²C, SPI, UART |
|
Voltage - Supply |
1.71V ~ 3.6V |
|
Current - Receiving |
6.3mA |
|
Current - Transmitting |
5.7mA |
|
Operating Temperature |
-40°C ~ 105°C (TA) |
|

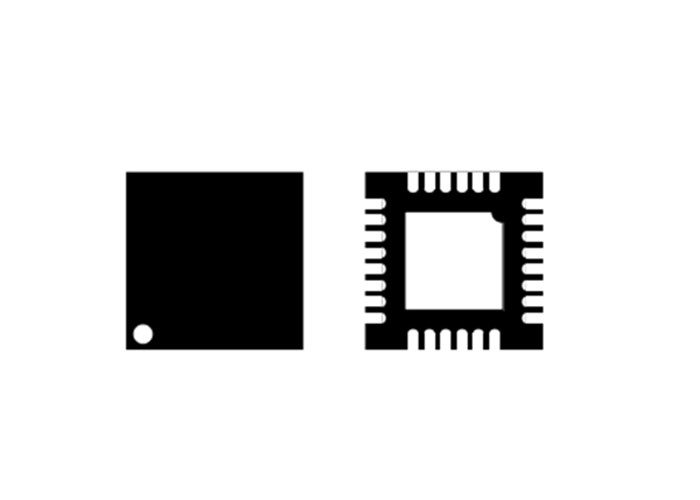

Package / Case |
48-VFQFN Exposed Pad |
|
Supplier Device Package |
48-HVQFN (7x7) |
Multi-Standard Radio
2.4 GHz BT Low Energy (BLE) version 5.0 compliant supporting up to 8 simultaneous hardware connections
Generic FSK modulation
Data Rate: 250, 500 and 1000 kbps
Modulations: GFSK BT = 0.3, 0.5, and 0.7;FSK/MSK
Modulation Index: 0.32, 0.5, 0.7, and 1.0
Typical Receiver Sensitivity(BLE 1 Mbps) = –95 dBm
Typical Receiver Sensitivity(250 kbps GFSK-BT=0.5, h=0.5) = –99 dBm
Programmable Transmitter Output Power:–30 dBm to 5 dBm
Low external component counts for low cost application
On-chip balun with single ended bidirectional RF port
Block Diagram
