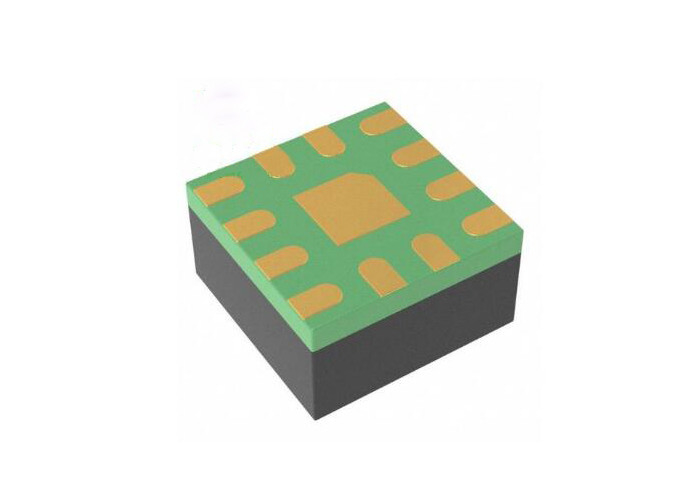

DC DC Converter LTC3307AHV#WTRPBF High Efficiency QFN12 Low Noise

DC DC Converter LTC3307AHV#WTRPBF High Efficiency QFN12 Low Noise

Product Description Of LTC3307AHV#WTRPBF

LTC3307AHV#WTRPBF is a very small, high efficiency, low noise, monolithic synchronous 3A step-down DC/DC converter operating from a 2.25V to 5.5V input supply. Using constant frequency, peak current mode control at switching frequencies 1MHz to 3MHz and minimum on-time as low as 22ns, this regulator achieves fast transient response with small external components. Silent Switcher architecture minimizes EMI emissions.

Specification Of LTC3307AHV#WTRPBF

Features Of LTC3307AHV#WTRPBF

• High Efficiency: 8mΩ NMOS, 31mΩ PMOS
• Programmable Frequency 1MHz to 3MHz
• Tiny Inductor and Capacitors
• Peak Current Mode Control
• 22ns Minimum On-Time
• Wide Bandwidth, Fast Transient Response
• Low Ripple Burst Mode® Operation with IQ of 40µA
• VIN Range: 2.25V to 5.5V
• VOUT Range: 0.5V to VIN
• VOUT Accuracy: ±1% Over Temperature Range
• Precision 400mV Enable Threshold, 1μA in Shutdown
• Power Good, Internal Compensation and Soft Start
• Thermally Enhanced 2mm × 2mm LQFN Package

Applications Of LTC3307AHV#WTRPBF

• Automotive, Industrial, Communications
• FPGA, ASIC, µP Core Supplies
• Optical Networking, Servers, Telecom
• Battery Operated Systems
• Distributed DC Power Systems (POL)

Simplification Diagram Of LTC3307AHV#WTRPBF

Block Diagram Of LTC3307AHV#WTRPBF

Functional Block Diagram Of LTC3307AHV#WTRPBF
