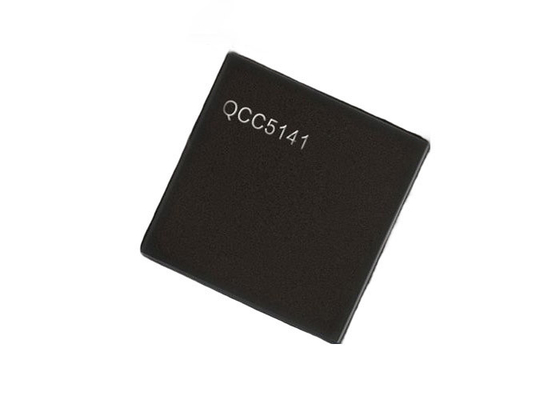

Low power QCC-5141-0-WLNSP94B-TR-01-0 BT Audio System-on-Chips

Low power QCC-5141-0-WLNSP94B-TR-01-0 BT Audio System-on-Chips
Low power QCC-5141-0-WLNSP94B-TR-01-0 BT Audio System-on-Chips
Low power QCC-5141-0-WLNSP94B-TR-01-0 BT Audio System-on-Chips Low power QCC-5141-0-WLNSP94B-TR-01-0 BT Audio System-on-Chips

Large Image :  Low power QCC-5141-0-WLNSP94B-TR-01-0 BT Audio System-on-Chips

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: QCC-5141-0-WLNSP94B-TR-01-0
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: BGA
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union

Low power QCC-5141-0-WLNSP94B-TR-01-0 BT Audio System-on-Chips

Description
Part Number: QCC-5141-0-WLNSP94B-TR-01-0 Protocol: BT V5.0
Data Rate (Max): 2Mbps Memory Size: 112kB RAM, 448kB ROM
Serial Interfaces: I²C, SDIO, SPI, UART, USB Mounting Type: Surface Mount

Low power QCC-5141-0-WLNSP94B-TR-01-0 BT Audio System-on-Chips



Description

QCC-5141-0-WLNSP94B-TR-01-0 is a family of breakthrough BT audio System-on-Chips (SoCs) based on a low-power architecture, designed to meet consumer demand for robust, high quality,wireless listening in smaller devices with longer audio playback.



Specifications

BLE

BT 5.1²/5.2¹¹/5.3³ including 2 Mbps BLE
Single ended antenna connection
with on-chip balun and Tx/Rx switch

Audio DSP

Dual 120MHz (240MHz) Kalimba audio DSP cores
Flexible clock speed from 2MHz up to 120MHz (240MHz
)

Application Subsystem

32-bit firmware processor
32-bit 32/80MHz developer processor

Memory

80KB program RAM, 256KB data RAM
112KB program RAM, 448KB data RAM
384KB program RAM, 1408KB data RAM

Interfaces

UART, USB 2.0, SDIO, QSPI, 2x bit serializers
3x bit serializers  (I2C/SPI), NOR flash, up to 55x PIO

Power Management

Integrated power management unit (PMU)
Dual switch-mode power supply (SMPS)

Battery Support

Integrated battery charger supporting internal mode
(up to 200 mA) & external mode (up to 1.8 A)



Applications

  • BT Earbuds

  • BT Headsets

  • BT Hearables

  • BT Portable Speakers



Support for multiple voice ecosystems
The QCC5144 offers support for push button and wake word activated digital assistants, for multiple ecosystems. This can help to accelerate commercialization of voice-activated products and reduce integration and development time for device manufacturers by combining local voice recognition algorithms running on the BT audio platform with cloud services running on a mobile application.
