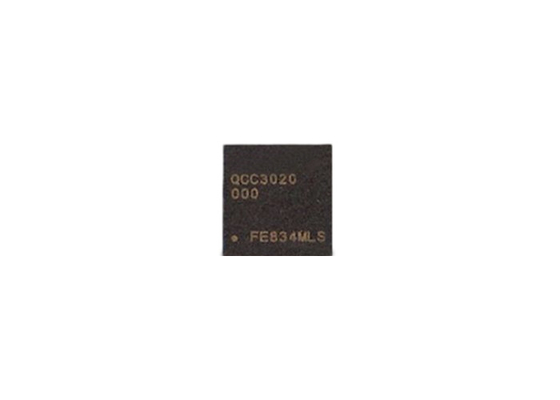

BT IC QCC-3020-0-CSP90-TR-00-0 Low Power Entry Level Flash TWS 2.4GHz BT Audio SoC

BT IC QCC-3020-0-CSP90-TR-00-0 Low Power Entry Level Flash TWS 2.4GHz BT Audio SoC

Description

QCC-3020-0-CSP90-TR-00-0 is an entry-level flash programmable BT Audio SoC based on an extremely low power architecture which has been designed for use in compact feature optimized TrueWireless™ Stereo earbuds.

The QCC3020 is available in a VFBGA package with support for aptX™ audio and is designed to provide our customers with a solution that helps to reduce development time and cost.

QCC3020 is part of the QCC30xx Low Power Entry-Level BT Audio SoC Series.

Specifications

Features

• Same extremely low-power performance as QCC5100 Series

• Optimized for TrueWireless Stereo and TrueWireless Stereo Plus

• BT 5 radio

• 2 Mbps BT low energy support

• Ultra-small form factor

• Powerful tri-core processor architecture

• Dual core 32-bit processor application subsystem

• Single core 120Mhz Kalimba DSP audio subsystem (runs from ROM)

• 1-ch 98.3dBA Class-D

• 1-ch 101dBA Class-AB

• 24-bit audio interfaces

FAQ

Q. Are your products original?

A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and
ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
