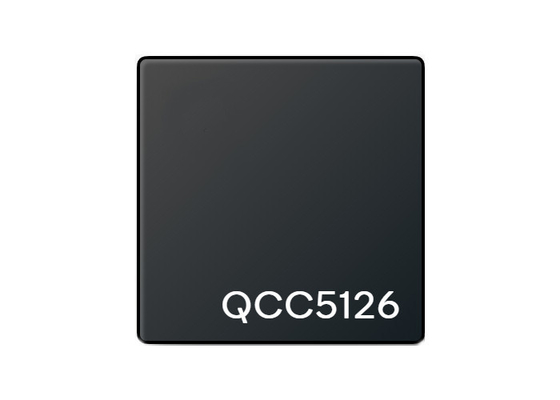

Audio BT IC 2Mbps Earpods Chip BT SoC Dual Core BGA QCC-5126-0-CSP90-TR-01-0

BT IC QCC-5126-0-CSP90-TR-01-0 Low power BT Audio SoC in a BGA package

Description

The QCC-5126-0-CSP90-TR-01-0 System-on-Chip (SoC) is designed to meet consumer demand for robust, high quality, wireless BT listening experiences with support for voice assistants. The SoC is optimized for small form-factor devices to support extremely low power consumption for longer audio playback.

Extremely low power premium tier BT Audio SoC in a BGA package, designed for use in compact, voice enabled, feature rich wire-free earbuds, hearables and headsets.

QC5126 is a part of the QCC5100 Low Power BT Audio SoC Series.

Features

Extremely low power design
BT 5 radio
2Mbps BT low energy (LE) support
Ultra-small form factor
Powerful quad-core processor architecture
Dual core 32-bit processor application subsystem
Dual core Kalimba™ DSP Audio subsystem
Embedded ROM + RAM and external Q-SPI Flash
Integrated PSRAM for audio buffering
2-ch 98dBA headset class D
High performance low power audio
2-ch 99dBA line inputs (single ended)
192kHz 24-bit I2S & SPDIF interfaces
Fully programmable digital ANC
Designed to support digital assistants, Push to Talk/Voice Activated
Flexible software platform with powerful new IDE support
Designed to support aptX, aptX HD and aptX Adaptive
Designed to support TrueWireless™ Stereo and TrueWireless Stereo Plus
Integrated battery charger supporting internal mode (up to 200 mA) and external mode (up to 1.8 A)
Designed for reduced eBoM through highly integrated SoC design

Voice assistant support
Support for voice services including Amazon Voice Services and the Google Assistant.

Extremely low power
SoC designed to support development of small form factor, richly-featured earbuds that can be used all day, with up to 10 hours of play from a 65mHA battery.

High quality wireless audio
aptX™ Audio, aptX HD, and aptX Adaptive technologies are designed to deliver consistent, high quality audio streaming over BT.
