Product Details:
|
| Features: | Single-Core Processor, Supports External Power Amplifier | Part Number: | ESP8684-MINI-1 |
|---|---|---|---|
| Product Category: | Multiprotocol Modules | Interface Type: | GPIO, I2C, I2S, SPI, UART |
| Protocol Supported: | 802.11 B/g/n | Mounting Style: | SMD/SMT |
| Highlight: | ESP8684-MINI-1 Single Core Microprocessor,ESP8684-MINI-1 WiFi,WiFi Bluetooth 5.0 Ble Module |
||

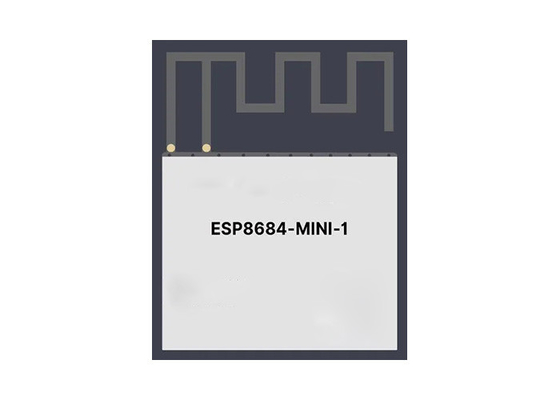

ESP8684-MINI-1 Small 2.4GHz Wi-Fi and BT 5 Modules Single-core microprocessor
Product Description
ESP8684-MINI-1 Small 2.4GHz Wi-Fi and BT 5 Modules are built based on the ESP8684 series of SoCs with a RISC-V single-core microprocessor. The ESP8684-MINI-1 offers an onboard PCB antenna or external antenna connector. The devices provide a rich set of peripherals, ideal for smart homes, industrial automation, health care, and consumer electronics. These peripherals range from UART, I2C, LED PWM controller, general DMA controller, temperature sensor, and SAR ADC. It also includes SPI, Dual SPI, and Quad SPI interfaces.
The ESP8684-MINI-1 Small 2.4GHz Wi-Fi and BT 5 Modules are available in three variants that integrate the ESP8684H1, ESP8684H2, and ESP8684H4 chips.
Specification Of ESP32-S2-SOLO-U
|
|
3 V |
|
|
3.6 V |
|
|
- 40 C |
|
|
+ 105 C |
|
|
PCB Antenna |
|
Antenna: |
External |
|
Core: |
RISC-V |
|
Data Rate: |
2 Mb/s, 72.2 Mb/s |
|
Memory Size: |
4 MB |
|
Operating Supply Current: |
500 mA |
Applications
Smart Home
Light control
Smart button
Smart plug
Indoor positioning
Industrial Automation
Industrial robot
Industrial field bus
Consumer Electronics
Smartwatch and bracelet
Over-the-top (OTT) devices
Logger toys and proximity sensing toys
Health Care
Health monitor
Baby monitor
Smart Agriculture
Smart greenhouse
Smart irrigation
Agriculture robot
Retail and Catering
POS machines
Service robot
Generic low-power IoT sensor hubs
Generic low-power IoT data loggers
Module Schematics
