Memory IC CY7C1312KV18-300BZXC 1.8V Synchronous Pipelined SRAMs CY7C1312 FBGA165

Memory IC CY7C1312KV18-300BZXC 1.8V Synchronous Pipelined SRAMs CY7C1312 FBGA165

Product Description

CY7C1312KV18-300BZXC is 1.8 V Synchronous Pipelined SRAMs, equipped with QDR II architecture. QDR II architecture consists of two separate ports: the read port and the write port to access the memory array. The read port has dedicated data outputs to support read operations and the write port has dedicated data inputs to support write operations. QDR II architecture has separate data inputs and data outputs to completely eliminate the need to ‘turnaround’ the data bus that exists with common I/O devices. Access to each port is through a common address bus. Addresses for read and write addresses are latched on alternate rising edges of the input(K) clock.

Specification Of CY7C1312KV18-300BZXC

Logic Block Diagram

Features

• Separate independent read and write data ports
• Supports concurrent transactions
• 333 MHz clock for high bandwidth
• Two-word burst on all accesses
• Double-data rate (DDR) interfaces on both read and write ports(data transferred at 666 MHz) at 333 MHz
• Two input clocks (K and K) for precise DDR timing
• SRAM uses rising edges only
• Single multiplexed address input bus latches address inputs for both read and write ports
• Core VDD = 1.8 V (±0.1 V); I/O VDDQ = 1.4 V to VDD
• Supports both 1.5 V and 1.8 V I/O supply
• Available in 165-ball FBGA package (13 × 15 × 1.4 mm)

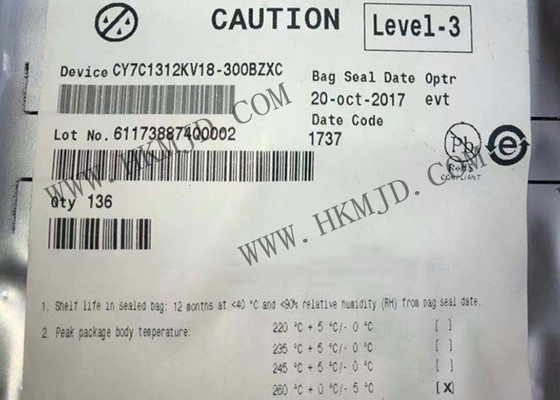

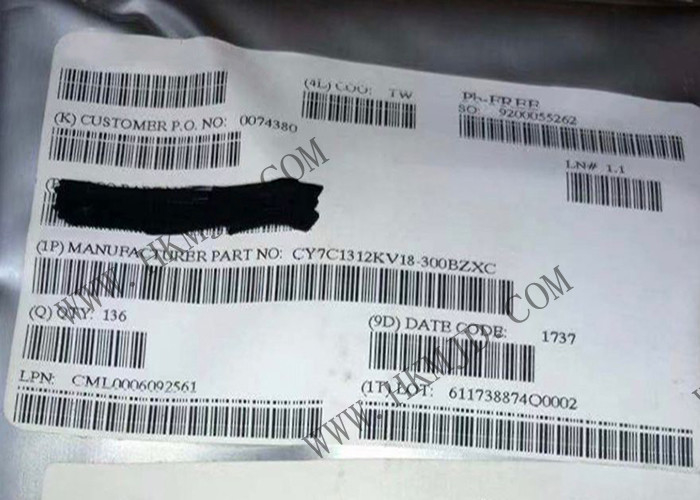

Product Photo

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
