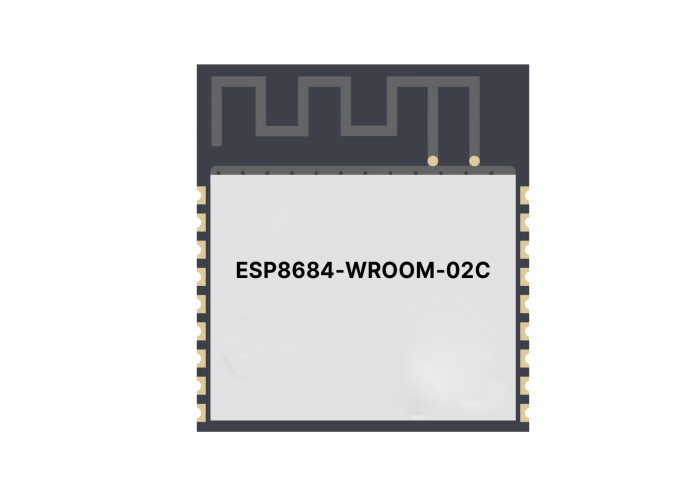

26MHz Wireless Communication Module BT 5 Module ESP8684-WROOM-02C

Wireless Communication Module ESP8684-WROOM-02C RISC-V single core 2.4 GHz Wi-Fi and BT 5 module​

Product Description

ESP8684-WROOM-02C is a general-purpose Wi-Fi and Bluetooth LE module. The rich set of peripherals and high performance make this module an ideal choice for smart homes, industrial automation,health care, consumer electronics, etc.
ESP8684-WROOM-02C comes with an on-board PCB antenna. It can be mounted onto the surface of a PCB board.

Features
CPU and On-Chip Memory
ESP8684H2 or ESP8684H4 embedded, 32-bit RISC-V single-core processor, up to 120 MHz
576 KB ROM
272 KB SRAM (16 KB for cache)
SiP flash
Access to flash accelerated by cache
Supports flash in-Circuit Programming (ICP)
Wi-Fi
IEEE 802.11 b/g/n-compliant
Center frequency range of operating channel:2412 ~ 2484 MHz
Supports 20 MHz bandwidth in 2.4 GHz band
1T1R mode with data rate up to 72.2 Mbps
Wi-Fi Multimedia (WMM)
Immediate Block ACK
Fragmentation and defragmentation
Transmit opportunity (TXOP)
Automatic Beacon monitoring (hardware TSF)
3 × virtual Wi-Fi interfaces
Simultaneous support for Infrastructure BSS in Station mode, SoftAP mode, Station + SoftAP mode, and promiscuous mode

Applications

Smart Home
Light control
Smart button
Smart plug
Indoor positioning
Industrial Automation
Industrial robot
Industrial field bus
Consumer Electronics
Smart watch and bracelet
Over-the-top (OTT) devices
Logger toys and proximity sensing toys
Health Care
Health monitor
Baby monitor

Block Diagram
