Product Details:
|
| Part Number: | ESP8684-WROOM-03 | Operating Voltage/Power Supply: | 3.0 ~ 3.6 V |
|---|---|---|---|
| Operating Ambient Temperature: | –40 ~ 105 °C | Crystal Oscillator: | 26 MHz |
| Frequency: | 2412 ~ 2484 MHz | Type: | Wireless Communication Module |
| Highlight: | BLE Wireless Communication Chip,Wireless Communication Chip ESP8684-WROOM-03,ESP8684-WROOM-03 5.0 Bluetooth Module |
||

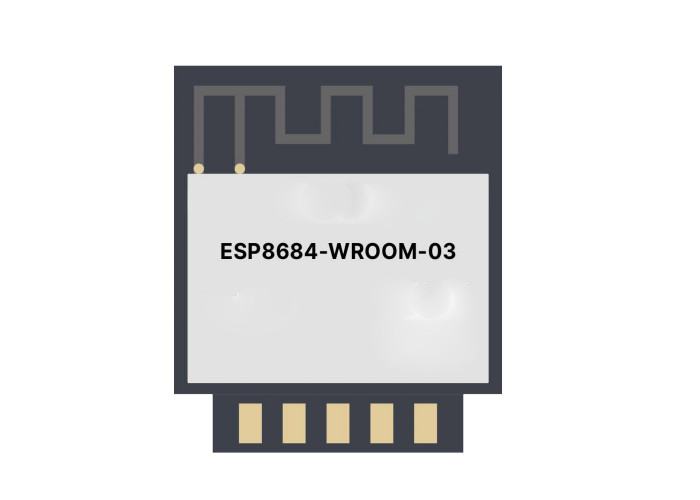

Wireless Communication Module ESP8684-WROOM-03 WiFi And BT Dual-Mode Module
Description
ESP8684-WROOM-03 is a general-purpose Wi-Fi and BLE module. The rich set of peripherals and high performance make this module an ideal choice for smart homes, industrial automation,health care, consumer electronics, etc.
ESP8684-WROOM-03 can be vertically soldered to a PCB board via wave soldering. The module has 8 available GPIOs.
ESP8684-WROOM-03 comes with a PCB antenna.
Applications
Health Care
Health monitor
Baby monitor
Smart Agriculture
Smart greenhouse
Smart irrigation
Agriculture robot
Retail and Catering
POS machines
Service robot
Generic Low-power IoT Sensor Hubs
Generic Low-power IoT Data Loggers
Pin Layout
Block Diagram
