Product Details:
|
| Part Number: | MKW35A512VFT4 | Data Rate: | 250, 500 And 1000 Kbps |
|---|---|---|---|
| Modulation Index: | 0.32, 0.5, 0.7, And 1.0 | Typical Receiver Sensitivity: | –95 DBm |
| Programmable Transmitter Output Power: | –30 DBm To 5 DBm | Mounting Type: | Surface Mount, Wettable Flank |
| Highlight: | 2.4GHz BT IC mcu,BT IC RTC Wireless,BT Wireless Microcontroller Chips MKW35A512VFT4 |
||

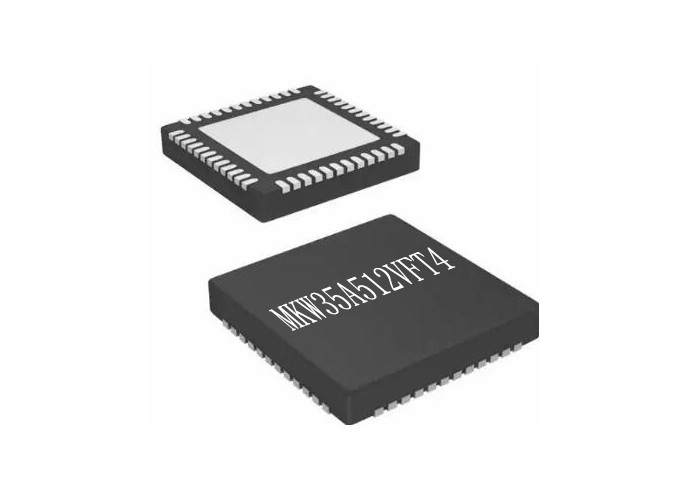

BT IC MKW35A512VFT4 2.4 GHz BT Low Energy 5.0 Wireless Microcontroller MKW35A512
Product Description
MKW35A512VFT4 is 2.4 GHz BT Low Energy 5.0 Wireless Microcontroller, On-chip balun with single ended bidirectional RF port, Low external component counts for low cost application. Nine MCU low-power modes to provide power optimization based on application requirements.
Specification Of MKW35A512VFT4
| ARM Cortex M0+ | |
| 48 MHz | |
| 1 Mbps | |
| - 95 dBm, - 99 dBm | |
| 1.71 V to 3.6 V | |
| 6.3 mA | |
| 5.7 mA | |
| 512 kB | |
| Tray | |
| ADC Resolution: | 16 bit |
Features
FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
