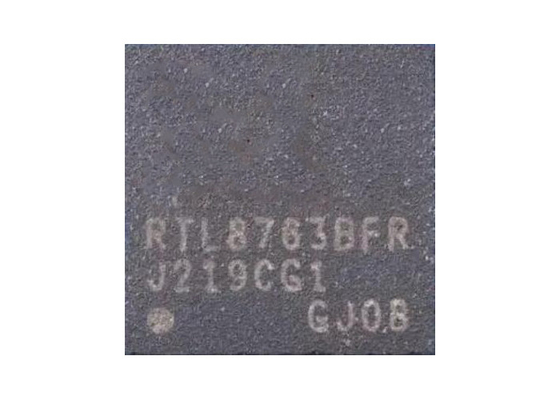

RTL8763BFR BT IC Low Energy 5.0 Dual Mode Chip RTL8763 TWS BT Headset

BT IC RTL8763BFR BT Low Energy 5.0 Dual Mode Chip RTL8763 TWS BT Headset

Product Description

RTL8763BFR is complete TWS true wireless BT headset integration solution, supports BT 5.0, and has binaural call function.
RTL8763BFR has 32-bit ARM processor, 24-bit DSP, running frequency up to 160MHz, and built-in 8Mbits Flash memory. It also has built-in lithium battery charging management, built-in overvoltage, overcurrent, undervoltage protection and other battery protection devices. In terms of scalability, it supports three LED drivers, supports touch IC control, supports analog and digital microphone input, and supports dual microphones. In terms of noise reduction, it supports noise reduction function and ambient sound monitoring mode, which can be said to be a high-performance all-in-one TWS true wireless Bluetooth headset integration solution.

Specification Of RTL8763BFR

Features

• Supports BT Classic (BDR/EDR)
• Supports BT Low Energy (BLE)
• True Wireless Stereo (RWS)
• Proprietary data communication service
• Built-in 8Mbits flash memory
• Supports high-resolution audio codecs up to 24-bit, 192kHz audio data formats
• Support dual analog and digital MIC, AUX-IN, I2S digital audio, analog output
• Supports high-speed UART, I2C, SPI and USB2.0 compatible interfaces
• Supports high-resolution 12-bit multi-channel ADCs
• Supports PWM I/O and Smart LED Controller
• Support USB BC1.2 battery charging
• Smart I/O assignment scheme using MUX

Functional Block Diagram
