Product Details:
|
| Part Number: | STM32H725IEK6 | Types: | ARM Microcontroller - MCU |
|---|---|---|---|
| Core: | 32-bit Arm® Cortex®-M7 | Frequency: | 550MHz |
| Voltage Range: | 1.7V - 3.6V | Operating Temperature Range: | -40°C - 85°C/125°C |
| Highlight: | Integrated Circuits STM32H7 STM32H725IEK6,STM32H725IEK6 32-Bit Embedded Microcontroller |
||

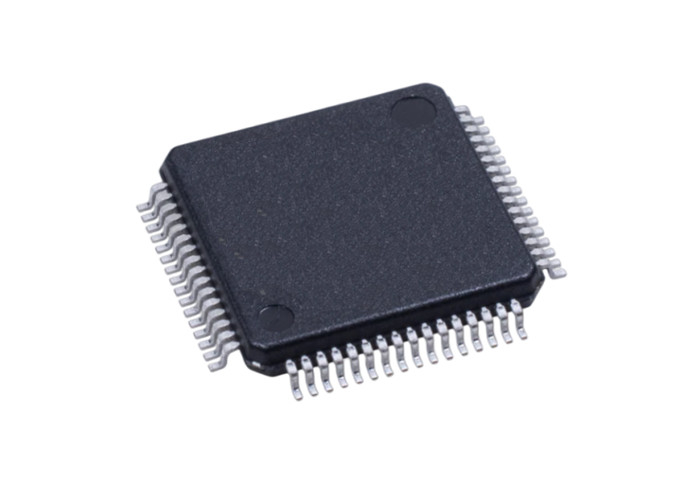

Integrated Circuits STM32H7 STM32H725IEK6 32-Bit Embedded Microcontroller
Description
STM32H725IEK6 32-bit microcontroller (MCU) is suitable for use in consumer, industrial and appliance applications and is ready for Internet of Things (IoT) solutions. These microcontrollers are highly integrated and are based on a high-performance ARM® Cortex®-M0+ 32-bit RISC core operating at up to 64MHz. The device includes a Memory Protection Unit (MPU), high-speed embedded memory (up to 128KB Flash program memory and 36kB SRAM), DMA, and various system functions, enhanced I/O and peripherals. The device operates over an ambient temperature range of -40°C to 125°C and an operating supply voltage range of 1.7V to 3.6V.
Specification
|
Number of I/O: |
67 |
Program Memory Size: |
1MB (1M x 8) |
|---|---|---|---|
|
Program Memory Type: |
FLASH |
RAM Size: |
564K x 8 |
|
Mounting Type: |
Surface Mount |
Package: |
UFBGA176 |
Features
Core: ARM® 32-bit Cortex®-M0+ CPU
Up to 128KB Flash
36KB SRAM (32KB with HW parity)
VBAT power supply for RTC and alternate registers
4 to 48MHz crystal oscillator
7-channel DMA controller, flexible mapping
12-bit 0.4µs ADC (up to 16 external channels)
Two fast low-power analog comparators with programmable inputs and outputs, rail-to-rail
Two 12-bit DACs, low power sample and hold
14 timers (two 128MHz): 16-bit for advanced motor control, one 32-bit and five 16-bit general purpose, two basic 16-bit, two low-power 16-bit, two watchdogs, SysTick timing device
Calendar RTC with alarm and timed wake-up from stop/standby/shutdown modes
USB Type-C™ Power Delivery Controller
Dev Spend: Serial Wire Debug (SWD)
