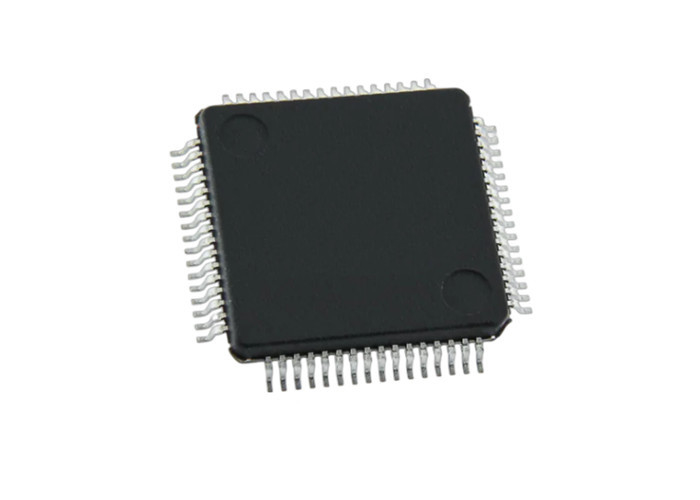

Integrated Circuit Chip STM32H725VEH6 STM32H7 ARM Microcontroller - MCU

Integrated Circuit Chip STM32H725VEH6 STM32H7 ARM Microcontroller - MCU

Product Description

STM32H725VEH6 high-performance MCU is based on the high-performance Arm® Cortex®-M7 32-bit RISC core and operates at up to 400MHz. The Cortex-M7 core has floating-point unit (FPU) precision and supports Arm double-precision (IEEE 754 compliant) and single-precision data processing instructions and data types.

The MCU uses high-speed embedded memory with up to 2MB of dual-area flash memory, 1MB of RAM (including 192KB of TCM RAM, 864KB of user SRAM, and 4KB of backup SRAM). In addition, the device features a variety of enhanced I/O and peripherals connected to the APB bus, AHB bus, 2x32-bit multi-AHB bus matrix, and multi-layer AXI interconnects that support internal and external memory access.

The device features three ADCs, two DACs, two ultra-low-power comparators, a low-power RTC, a high-resolution timer, 12 general-purpose 16-bit timers, two PWM timing for motor control , five low-power timers, and a true random number generator (RNG). The device supports four digital filters for external sigma-delta modulators (DFSDMs) and features standard and advanced communication interfaces.

Features

• 32-bit Arm® Cortex®-M7 CPU with DP-FPU, L1 cache: 32-Kbyte data cache and 32-Kbyte instruction cache allowing 0-wait state execution from embedded Flash memory and external memories, frequency up to 550 MHz, MPU, 1177 DMIPS/2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
• Up to 1 Mbyte of embedded Flash memory with ECC
• Flexible external memory controller with up to 24-bit data bus: SRAM, PSRAM, SDRAM/LPSDR SDRAM, NOR/NAND memories
• 2 x Octo-SPI interface with XiP
• 2 x SD/SDIO/MMC interface
• 1.62 V to 3.6 V application supply and I/O
• POR, PDR, PVD and BOR
• Dedicated USB power
• Embedded DCDC and LDO regulator(*)VFQFPN68 variant is DCDC only
• Internal oscillators: 64 MHz HSI, 48 MHz HSI48, 4 MHz CSI, 32 kHz LSI
• External oscillators: 4-50 MHz HSE, 32.768 kHz LSE

Applications:

• Motor drive and application control

• Medical equipment

• Industrial applications: PLC, inverters, circuit breakers

• Printers, and scanners

• Alarm systems, video intercom, and HVAC

• Home audio appliances

• Mobile applications, Internet of Things

• Wearable devices: smart watches

TFBGA100 package outline
