Product Details:
|
| Part Number: | STM32H733ZGT6 | Core Size: | 32-Bit Single-Core |
|---|---|---|---|
| Speed: | 550MHz | Number Of I/O: | 112 |
| RAM Size: | 564K X 8 | Type: | Microcontroller IC |

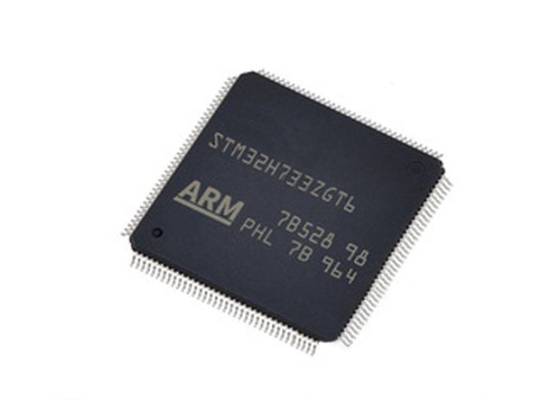

STM32H733ZGT6 Microcontroller IC 32-Bit Single-Core 550MHz 1MB FLASH 144-LQFP
Product Description
STM32H733ZGT6 devices incorporate high-speed embedded memories with 1 Mbyte of Flash memory, up to 564 Kbytes of RAM (including 192 Kbytes that can be shared between ITCM and AXI, plus 64 Kbytes exclusively ITCM, plus 128 Kbytes exclusively AXI, 128 Kbyte DTCM, 48 Kbytes AHB and 4 Kbytes of backup RAM), as well as an extensive range of enhanced I/Os and peripherals connected to APB buses, AHB buses, 2x32-bit multi-AHB bus matrix and a multi layer AXI interconnect supporting internal and external memory access. To improve application robustness, all memories feature error code correction (one error correction, two error detections).
Product Attributes
|
Product Status |
Active |
|
Core Processor |
ARM® Cortex®-M7 |
|
Core Size |
32-Bit Single-Core |
|
Speed |
550MHz |
|
Connectivity |
CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
|
Peripherals |
Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT |
|
Number of I/O |
112 |
|
Program Memory Size |
1MB (1M x 8) |
|
Program Memory Type |
FLASH |
|
RAM Size |
564K x 8 |
|
Voltage - Supply (Vcc/Vdd) |
1.62V ~ 3.6V |
|
Data Converters |
A/D 12x12/b, 18x16b; D/A 2x12b |
|
Oscillator Type |
Internal |
|
Operating Temperature |
-40°C ~ 85°C (TA) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
144-LQFP |
|
Supplier Device Package |
144-LQFP (20x20) |
|
Base Product Number |
STM32H733 |
Applications
STM32H733ZGT6 bus matrix
