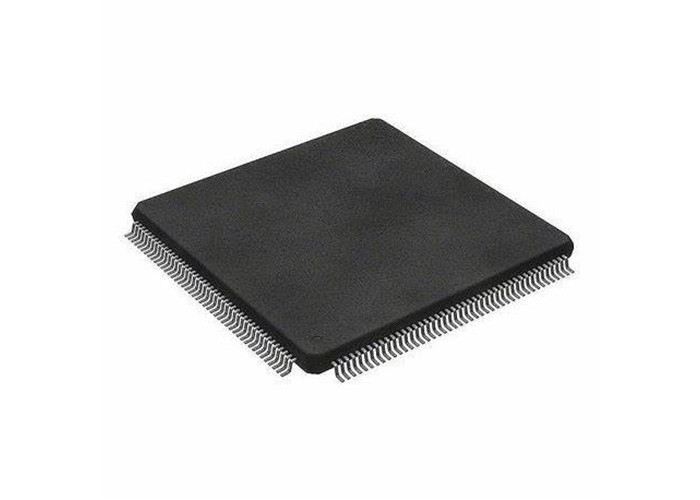

Integrated Circuit Chip STM32H735IGT6 High-Performance ARM Microcontroller IC

Integrated Circuit Chip STM32H735IGT6 high-performance ARM Microcontroller IC

Product Description

STM32H735IGT6 devices are based on the high-performance Arm® Cortex®-M7 32-bit RISC core operating at up to 550 MHz. The Cortex® -M7 core features a floating point unit (FPU) which supports Arm® double-precision (IEEE 754 compliant) and single-precision dataprocessing instructions and data types. The Cortex -M7 core includes 32 Kbytes of instruction cache and 32 Kbytes of data cache. STM32H735xG devices support a full set of DSP instructions and a memory protection unit (MPU) to enhance application security.

The devices embed peripherals allowing mathematical/arithmetic function acceleration(CORDIC coprocessor for trigonometric functions and FMAC unit for filter functions). All the devices offer three ADCs, two DACs, two operational amplifiers, two ultra-low power comparators, a low-power RTC, 4 general-purpose 32-bit timers, 12 general-purpose 16-bit timers including two PWM timers for motor control, five low-power timers, a true random number generator (RNG), and a cryptographic acceleration cell, and a HASH processor. The devices support four digital filters for external sigma-delta modulators (DFSDM). They also feature standard and advanced communication interfaces.

Standard peripherals
Five I2Cs
Five USARTs, five UARTs and one LPUART
Six SPIs, four I2Ss in Half-duplex mode. To achieve audio class accuracy, the I2S
peripherals can be clocked by a dedicated internal audio PLL or by an external
clock to allow synchronization (note that the five USARTs also provide SPI slave capability).
Two SAI serial audio interfaces
One SPDIFRX interface with four inputs
One SWPMI (Single Wire Protocol Master Interface)
Management Data Input/Output (MDIO) slaves
Two SDMMC interfaces
A USB OTG high-speed interface with full-speed capability (with the ULPI)
Two FDCANs plus one TT-FDCAN interface
An Ethernet interface
Chrom-ART Accelerator
HDMI-CEC

The Cortex®-M7 processor is a highly efficient high-performance featuring
Six-stage dual-issue pipeline
Dynamic branch prediction
Harvard architecture with L1 caches (32 Kbytes of I-cache and 32 Kbytes of D-cache)
64-bit AXI interface
64-bit ITCM interface
2x32-bit DTCM interfaces
