Product Details:
|
| Part Number: | STM32H735VGT6 | Speed: | 550MHz |
|---|---|---|---|
| Number Of I/O: | 67 | Program Memory Size: | 1MB (1M X 8) |
| RAM Size: | 564K X 8 | Voltage - Supply (Vcc/Vdd): | 1.71V ~ 3.6V |

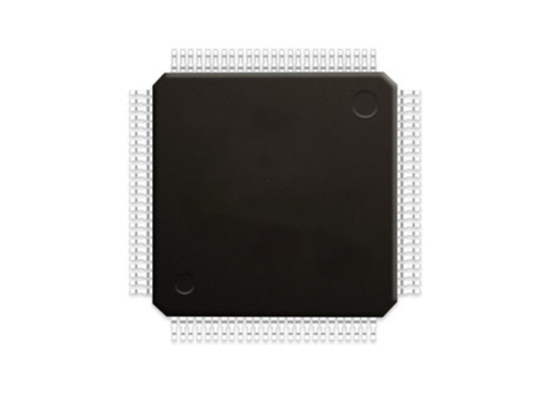

STM32H735VGT6 ARM Microcontroller IC 32-Bit Single-Core 550MHz 1MB FLASH 100-LQFP
Product Description
STM32H735VGT6 devices incorporate high-speed embedded memories with 1 Mbyte of Flash memory, up to 564 Kbytes of RAM (including 192 Kbytes that can be shared between ITCM and AXI, plus 64 Kbytes exclusively ITCM, plus 128 Kbytes exclusively AXI, 128 Kbyte DTCM, 48 Kbytes AHB and 4 Kbytes of backup RAM), as well as an extensive range of enhanced I/Os and peripherals connected to APB buses, AHB buses, 2x32-bit multi-AHB bus matrix and a multi layer AXI interconnect supporting internal and external memory access. To improve application robustness, all memories feature error code correction (one error correction, two error detections).
Product Attributes
|
Product Status |
Active |
|
Core Processor |
ARM® Cortex®-M7 |
|
Core Size |
32-Bit Single-Core |
|
Connectivity |
CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
|
Peripherals |
Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT |
|
Program Memory Type |
FLASH |
|
Data Converters |
A/D 12x12/b, 22x16b; D/A 2x12b |
|
Oscillator Type |
Internal |
|
Operating Temperature |
-40°C ~ 85°C (TA) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
100-LQFP |
|
Supplier Device Package |
100-LQFP (14x14) |
Features
32-bit CORDIC rotation engine
Circular and Hyperbolic modes
Rotation and Vectoring modes
Functions: Sine, Cosine, Sinh, Cosh, Atan, Atan2, Atanh, Modulus, Square root,Natural logarithm
Programmable precision up to 20-bit
Fast convergence: 4 bits per clock cycle
Supports 16-bit and 32-bit fixed point input and output formats
Low latency AHB slave interface
Results can be read as soon as ready without polling or interrupt
DMA read and write channels
