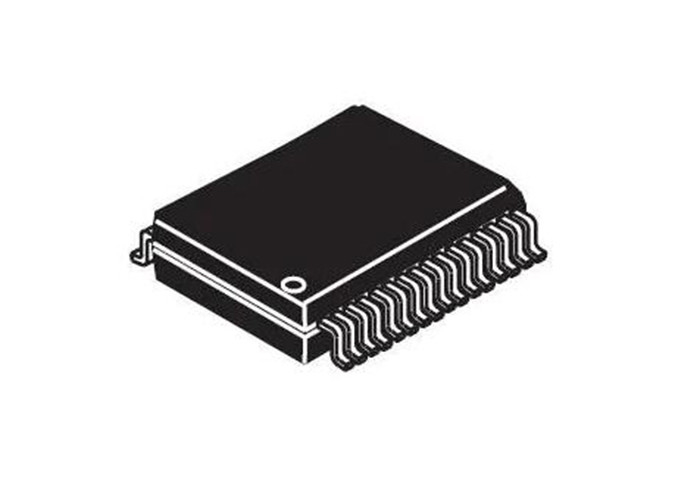

MCZ33905 SSOP32 Power Management IC MCZ33905DS5EK PMIC System Basis Chip

Power Management IC MCZ33905DS5EK PMIC System Basis Chip MCZ33905 SSOP32

Product Description
MCZ33905DS5EK is the second generation family of the System Basis Chip (SBC). It combines several features and enhances present module designs.
MCZ33905DS5EK works as an advanced power management unit for the MCU with additional integrated circuits such as sensors and CAN transceivers. It has a built-in enhanced high-speed CAN interface (ISO11898-2 and -5) with local and bus failure diagnostics, protection, and fail-safe operation modes. The SBC may include zero, one or two LIN 2.1 interfaces with LIN output pin switches.

Specification Of MCZ33905DS5EK

Features

• Voltage regulator for MCU, 5.0 or 3.3 V, part number selectable, with possibility of usage external PNP to extend current capability and share power dissipation
• Voltage, current, and temperature protection
• Extremely low quiescent current in LP modes
• Fully-protected embedded 5.0 V regulator for the CAN driver
• Multiple undervoltage detections to address various MCU specifications and system operation modes (i.e. cranking)
• Auxiliary 5.0 or 3.3 V SPI configurable regulator, for additional ICs, with overcurrent detection and undervoltage protection

Applications

• Aircraft and marine systems
• Automotive and robotic systems
• Farm equipment
• Industrial actuator controls

Simplified Application Diagram

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
