Product Details:
|
| Part Number: | STM32L496QGI6 | Program Memory Size: | 1MB (1M X 8) |
|---|---|---|---|
| RAM Size: | 320K X 8 | Voltage - Supply (Vcc/Vdd): | 1.71V ~ 3.6V |
| Operating Temperature: | -40°C ~ 85°C (TA) | Number Of I/O: | 110 |
| Highlight: | 32 Bit STM32L496QGI6,STM32L496QGI6 1.71V,3.6V Headphones ARM Microcontroller |
||

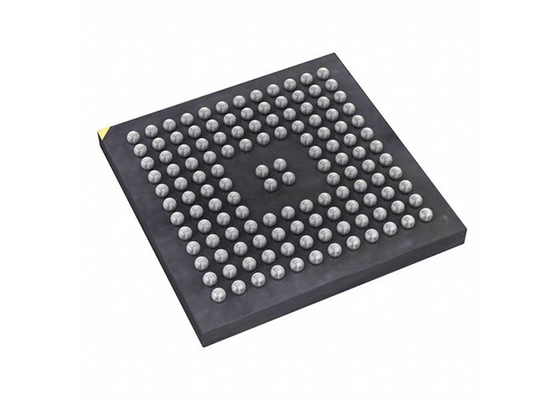

Apple IC Chip STM32L496QGI6 AirPods Max headset headphones 32bit ARM microcontroller
Product Description
The STM32L496QGI6 devices are ultra-low-power microcontrollers based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 80 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision that supports all Arm® single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.
The STM32L496QGI6 devices embed high-speed memories (up to 1 Mbyte of flash memory,320 Kbyte of SRAM), a flexible external memory controller (FSMC) for static memories (for devices with packages of 100 pins and more), a Quad SPI flash memories interface(available on all packages) and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.
The STM32L496QGI6 devices embed several protection mechanisms for embedded flash memory and SRAM: readout protection, write protection, proprietary code readout protection and Firewall.
Product Attributes
|
Core Processor |
ARM® Cortex®-M4 |
|
Core Size |
32-Bit Single-Core |
|
Speed |
80MHz |
|
Connectivity |
CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, SWPMI, UART/USART, USB OTG |
|
Peripherals |
Brown-out Detect/Reset, DMA, LCD, PWM, WDT |
|
Program Memory Type |
FLASH |
|
Data Converters |
A/D 19x12b; D/A 2x12b |
|
Oscillator Type |
Internal |
|
Mounting Type |
Surface Mount |
|
Package / Case |
132-UFBGA |
|
Supplier Device Package |
132-UFBGA (7x7) |
Power supply overview
