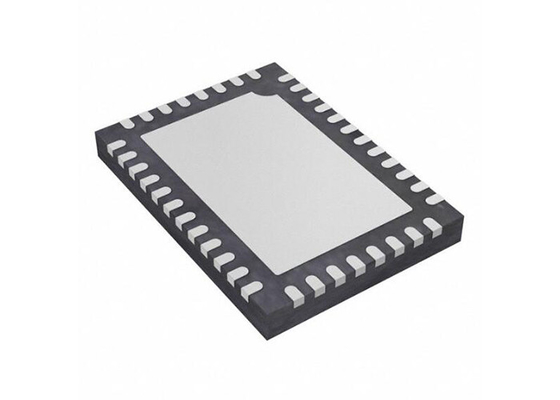

IC Chip TUSB544IRNQR USB Type-C Alt Mode Redriver Switch TUSB544 WQFN40

IC Chip TUSB544IRNQR USB Type-C Alt Mode Redriver Switch TUSB544 WQFN40

Product Description
TUSB544IRNQR is a USB Type-C Alt Mode redriver switch supporting data rates up to 8.1 Gbps This protocol-agnostic linear redriver is capable of supporting USB Type-C Alt Mode interfaces including VESA DisplayPort.
TUSB544IRNQR provides several levels of receive linear equalization to compensate for inter symbol interference (ISI) due to cable and board trace loss. Operates on a single 3.3 V supply and comes in a commercial and industrial temperature range.

Specification Of TUSB544IRNQR

Features

• Protocol Agnostic Reversible 4 Channel Linear Redriver Supporting up to 8.1 Gbps.
• USB Type-C with USB 3.1 Gen1 and DisplayPort 1.4 as Alternate Mode.
• Supports Processors with USB 3.1 and DisplayPort Mux Integrated for Type-C Applications
• Supports Signal Conditioning Inside Type-C Cable
• Cross-Point Mux for SBU Signals
• Linear Equalization up to 11 dB at 4.05 GHz
• GPIO and I2C Control for Channel Direction and Equalization
• Advanced Power Management by Monitoring USB Power States and Snooping DP Link Training
• Configuration through GPIO or I2C
• Hot-Plug Capable
• Single 3.3 V Supply
• Industrial Temperature: –40ºC to 85ºC (TUSB544I)
• Commercial Temperature: 0ºC to 70ºC (TUSB544)
• 4 mm × 6 mm, 0.4 mm Pitch, 40-pin QFN Package

Applications

• Tablets
• Notebooks
• Desktops
• Docking Stations
