Product Details:
|
| Part Number: | STM32L412CBU6TR | Core: | ARM Cortex M4 |
|---|---|---|---|
| Power Supply: | 1.71 V To 3.6 V | Number Of I/Os: | 52 I/O |
| Data Converters: | A/D 10x12b | Program Memory Size: | 128KB (128K X 8) |

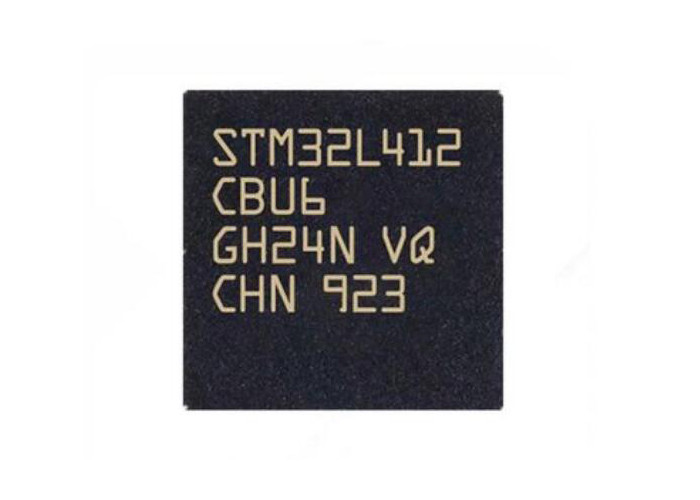

STM32L412CBU6TR Low Power Microcontrollers IC STM32L412 Up To 128KB Flash
Product Description
STM32L412CBU6TR is ultra-low-power microcontrollers based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 80 MHz.
STM32L412CBU6TR operates in the -40 to +85 °C (+105 °C junction) and -40 to +125 °C (+130 °C junction) temperature ranges from a 1.71 to 3.6 V VDD power supply when using internal LDO regulator and a 1.00 to 1.32V VDD12 power supply when using external SMPS supply. A comprehensive set of power-saving modes makes possible the design of lowpower applications
Specification Of STM32L412CBU6TR
| SMD/SMT | |
| QFN-48 | |
| ARM Cortex M4 | |
| 128 kB | |
| 32 bit | |
| 12 bit | |
| 80 MHz | |
| 52 I/O | |
| 40 kB | |
| 1.71 V | |
| 3.6 V | |
| - 40 C | |
| + 105 C | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| DAC Resolution: | 12 bit |
| Data RAM Type: | SRAM |
| Moisture Sensitive: | Yes |
| Number of ADC Channels: | 10 Channel |
| Number of Timers/Counters: | 10 Timer |
Features
