5.5V 60A Synchronous Buck Converter IC 1.25MHz CSD95481RWJ High Current

Integrated Circuit Chip CSD95481RWJ CSD95481 5.5 V 60 A Synchronous Buck Converters

Product Description

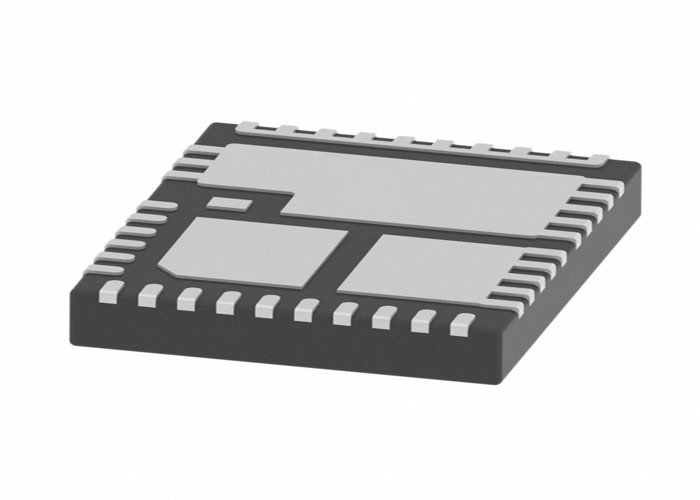

CSD95481RWJ NexFET™ power stage is a highly optimized design for use in a high-power, highdensity synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 5-mm × 6-mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.

Specification of CSD95481RWJ

Features

• 60-A Continuous Operating Current Capability
• Over 95% System Efficiency at 30 A
• High-Frequency Operation (up to 1.25 MHz)
• Diode Emulation Function
• Temperature Compensated Bi-Directional Current Sense
• Analog Temperature Output
• Fault Monitoring
• 3.3-V and 5-V PWM Signal Compatible
• Tri-State PWM Input
• Integrated Bootstrap Switch
• Optimized Dead Time for Shoot-Through Protection
• High-Density QFN 5-mm × 6-mm Footprint
• Ultra-Low-Inductance Package
• System Optimized PCB Footprint
• Thermally Enhanced Topside Cooling
• RoHS Compliant – Lead-Free Terminal Plating
• Halogen Free

Applications

• Multiphase Synchronous Buck Converters
• High-Frequency Applications
• High-Current, Low-Duty Cycle Applications
• POL DC-DC Converters
• Memory and Graphic Cards
• Desktop and Server VR12.x / VR13.x V-Core
• Synchronous Buck Converters

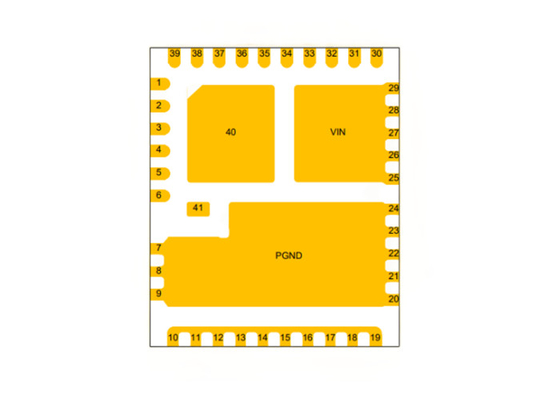

Pin Configuration
