Product Details:
|
| Part Number: | NRF52833-QDAA-R7 | Data Rate (Max): | 2Mbps |
|---|---|---|---|
| Voltage - Supply: | 1.7V ~ 5.5V | Current - Receiving: | 3.4mA ~ 10.7mA |
| Current - Transmitting: | 2.3mA ~ 30.4mA | Operating Temperature: | -40°C ~ 105°C |
| Highlight: | BT NRF52833-QDAA-R7 QFN40,rohs NRF52833-QDAA-R7 Multiprotocol,QFN40 BT RF System On A Chip |
||

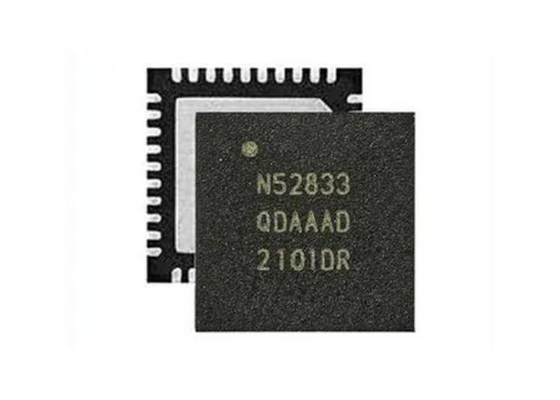

BT IC NRF52833-QDAA-R7 RF System On A Chip SoC NRF52833 Multiprotocol SoC QFN40
Product Description
NRF52833-QDAA-R7 is a general-purpose multiprotocol SoC with a BT Direction Finding capable radio, qualified for operation at an extended temperature range of -40°C to 105°C. It is built around a 64 MHz Arm Cortex-M4 with FPU, and has 512 KB flash and 128 KB RAM memory available for higher value applications.
Specification Of NRF52833-QDAA-R7
| ADC Resolution | 12 bit |
| Core | ARM Cortex M4 |
| Data Bus Width | 32 bit |
| Data RAM Size | 128 kB |
| Data RAM Type | RAM |
| Interface Type | I2C, SPI, UART, USB |
| Length | 5 mm |
| Maximum Clock Frequency | 64 MHz |
| Maximum Data Rate | 2 Mbps |
| Maximum Operating Temperature | + 105 C |
| Minimum Operating Temperature | - 40 C |
| Mounting Style | SMD/SMT |
| Number of ADC Channels | 8 Channel |
| Number of I/Os | 18 I/O |
| Number of Timers | 5 |
| Operating Frequency | 2.4 GHz |
| Output Power | 8 dBm |
| Package / Case | QFN-40 |
| Program Memory Size | 512 kB |
| Program Memory Type | Flash |
| Sensitivity | - 96 dBm |
| Subcategory | Wireless and RF Integrated Circuits |
| Supply Current Receiving | 4.6 mA |
| Supply Current Transmitting | 4.9 mA |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 1.7 V |
Features
