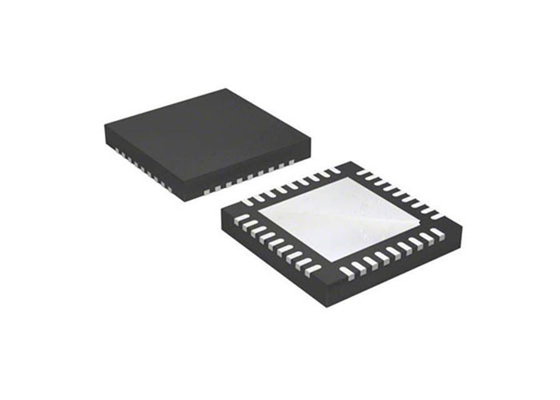

SPS Pmic Power Management Integrated Circuit 90A ISL99390FRZ 90A Smart Power Stages

Power Management ICs ISL99390FRZ 90A Smart Power Stage (SPS) Gen2 Module

Description

The ISL99390FRZ is 90A Smart Power Stages (SPS) that are compatible with Renesas ISL68/69xxx Digital Multiphase (DMP) controllers and phase doublers(ISL6617A),respectively. The ISL99390FRZ offer best in class current sense accuracy over line, load, and temperature. When combined with a Renesas Digital PWM controller,these devices enable precision system level power management and best in class transient response for loadline based regulators. These devices simplify design by eliminating typical DCR sensing networks and associated thermal compensation components.The thermally enhanced 5x6 package enables high density designs.

Features

• VIN input range: +3.0V to +16V
• Supports 90A DC current
• 3.3V compatible tri-state PWM input
• 5V compatible tri-state PWM input
• ±3% accuracy continuous signal for current monitor
• 8mV/°C temperature monitor, TOUT
• Comprehensive fault protection for high system reliability
• High-side FET short and overcurrent protection
• Smart Reverse Overcurrent Protection (SROCP)
• Over-temperature protection
• VCC Undervoltage Lockout (UVLO)
• Enable Input and fault reporting outputs
• Low power mode operation
• Up to 1.25MHz switching frequency
• RoHS-compliant, 5x6 QFN package

Applications

• Accelerators (GPU, ASIC, Artificial Intelligence)
• Core, graphic, and memory VRs for microprocessors
• High density VR for server, networking, and cloud computing
• POL DC/DC converters and video gaming consoles

Block Diagram
